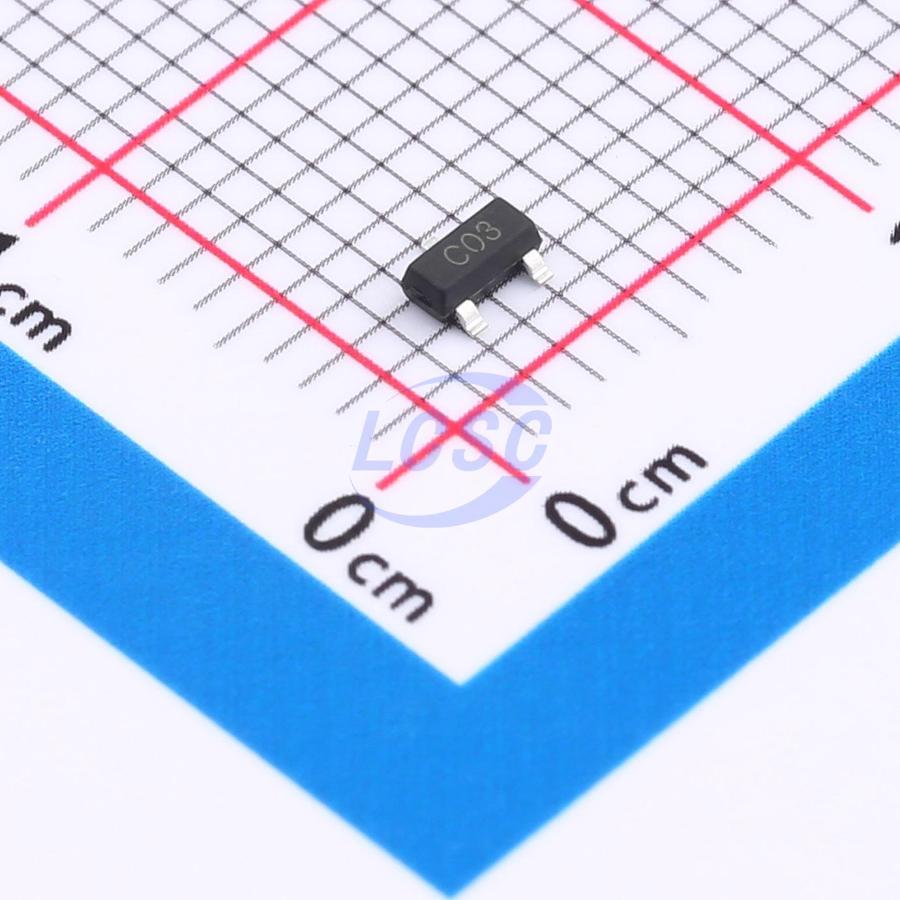

SM03C
7.5VC 16VC Clamp TVS DIODE SOT-23
TVS DIODE 3.3VWM 7.5VC 16VC SOT-23
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SM03C
- Store part #
- C42449124
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,450 in stock
#C42449124
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.95 | ₹79.50 |
| 100+ | ₹6.35 | ₹635.00 |
| 300+ | ₹5.56 | ₹1,668.00 |
| 3,000+ | ₹4.92 | ₹14,760.00 |
| 6,000+ | ₹4.45 | ₹26,700.00 |
| 9,000+ | ₹4.19 | ₹37,710.00 |
10 × ₹7.95
₹79.50
excl. GST
₹93.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SM03C
₹79.50 for 10 + GST
Specifications
- Clamping Voltage
- 7.5V;16V
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 4V
- type
- TVS
- Reverse Leakage Current (Ir)
- 40uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The SM03C is designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems medicall equipment and other applications. These devices are ideal for situations where board space is at a premium. This series has been specifically designed to protect sensitive components which are connected to power data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
Applications
- Cell Phone Handsets and Accessories
- Microprocessor based equipment
- Personal Digital Assistants (PDA's)
- Notebooks, Desktops, and Servers
- Portable Instrumentation
- Networking and Telecom
- Serial and Parallel Ports
- Peripherals
Key features
- IEC61000 - 4 - 2 (ESD) ±30kV (Contact) ±30kV (Air)
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- 350 Watts Peak Pulse Power per (tp = 8/20μs)
- Protects two bidirectional lines
- Low clamping voltage
- Working voltages: 3.3V to 36V
- Low leakage current
