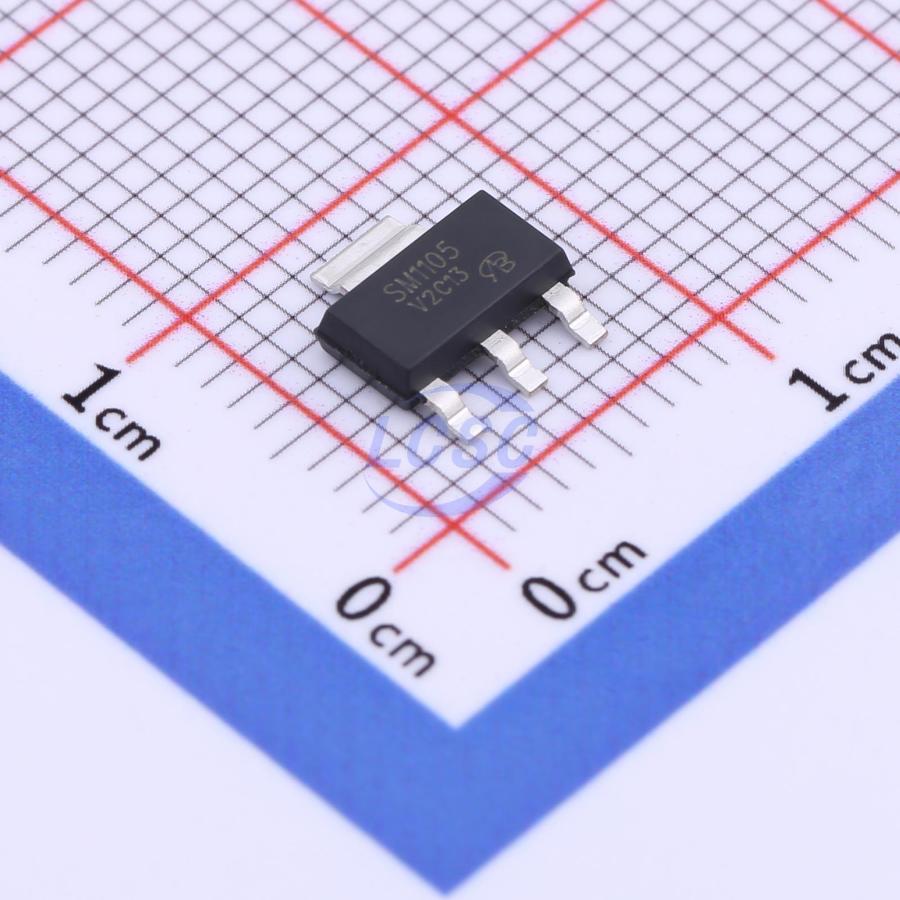

SM1105NSV-VB
N-Channel 100V 5A 1.7W Surface Mount SOT-223
SOT-223RoHSActive
MOSFET N-CH 100V 5A SOT-223
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SM1105NSV-VB
- Store part #
- C3040220
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C3040220
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.72 | ₹61.72 |
| 10+ | ₹48.90 | ₹489.00 |
| 30+ | ₹43.46 | ₹1,303.80 |
| 100+ | ₹36.51 | ₹3,651.00 |
| 500+ | ₹31.73 | ₹15,865.00 |
| 1,000+ | ₹29.99 | ₹29,990.00 |
1 × ₹61.72
₹61.72
excl. GST
₹72.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM1105NSV-VB
₹61.72 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 5A
- Pd - Power Dissipation
- 1.7W
- Reverse Transfer Capacitance (Crss)
- 5.3pF
- RDS(on)
- 110mΩ@10V;120mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- Maximum junction temperature 175 °C
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFL110TRPBF-VB#C5878813VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 241 | ₹36.71 · 241 in stock | View |
 | FDT1600N10A-VB#C725042VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 1 | ₹68.74 · 1 in stock | View |
 | FQT7N10TF-VB#C22388977VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 20 | ₹60.71 · 20 in stock | View |
 | IRFL110TR-VB#C709998VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 16 | ₹76.85 · 16 in stock | View |
 | PHT6NQ10T-VB#C7568815VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 25 | ₹63.80 · 25 in stock | View |
