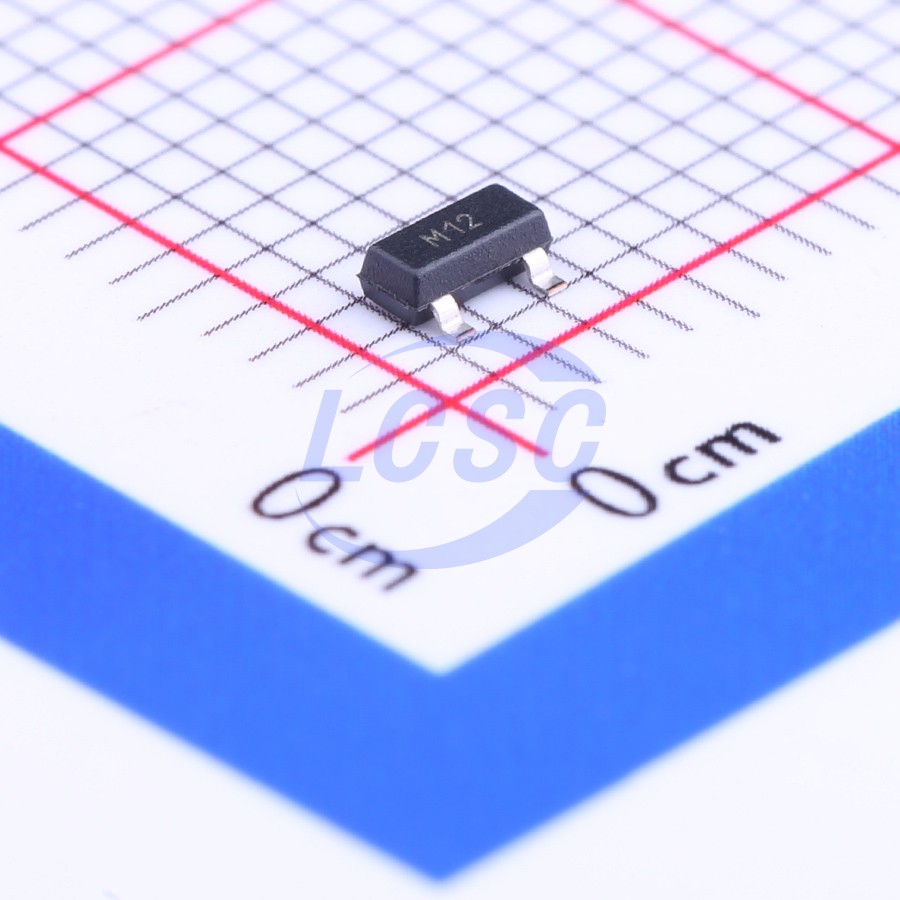

SM12-02HTG
18.5VC 22.5VC Clamp 17A@8/20us Ipp TVS DIODE SOT-23-3
TVS DIODE 12VWM 18.5VC 22.5VC SOT-23-3
- Manufacturer
- Littelfuse
- Manufacturer part #
- SM12-02HTG
- Store part #
- C133185
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C133185
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.05 | ₹130.25 |
| 50+ | ₹20.44 | ₹1,022.00 |
| 150+ | ₹18.05 | ₹2,707.50 |
| 500+ | ₹15.04 | ₹7,520.00 |
| 3,000+ | ₹13.71 | ₹41,130.00 |
| 6,000+ | ₹12.91 | ₹77,460.00 |
5 × ₹26.05
₹130.25
excl. GST
₹153.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SM12-02HTG
₹130.25 for 5 + GST
Specifications
- Clamping Voltage
- 22.5V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 17A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W@8/20us
- Number of Channels
- 2
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
The SM series TVS Diode Array is designed to protect sensitive equipment from damage due to electrostatic discharge (ESD), electrical fast transients (EFT), and lightning induced surges. The SM series can absorb repetitive ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard without performance degradation and safely dissipate up to 24A of 8/20us induced surge current (IEC61000-4-5, 2nd Edition) with very low clamping voltages.
Applications
- Industrial Equipment
- Test and Medical Equipment
- Point-of-Sale Terminals
- Motor Controls
- Legacy Ports (RS-232, RS-485)
- Security and Alarm System
- Automotive Electronics
Key features
- RoHS compliant and lead-free
- ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
- EFT, IEC 61000-4-4, 50A (5/50ns)
- Lightning, IEC 61000- 4-5, 2nd Edition, 24A (tp=8/20μs, SM05)
- Working voltages: 5V, 12V, 15V, 24V and 36V
- Low clamping voltage
- Low leakage current
- AEC-Q101 qualified (SOT23-3 package)
