TECH PUBLICDatasheet (PDF)

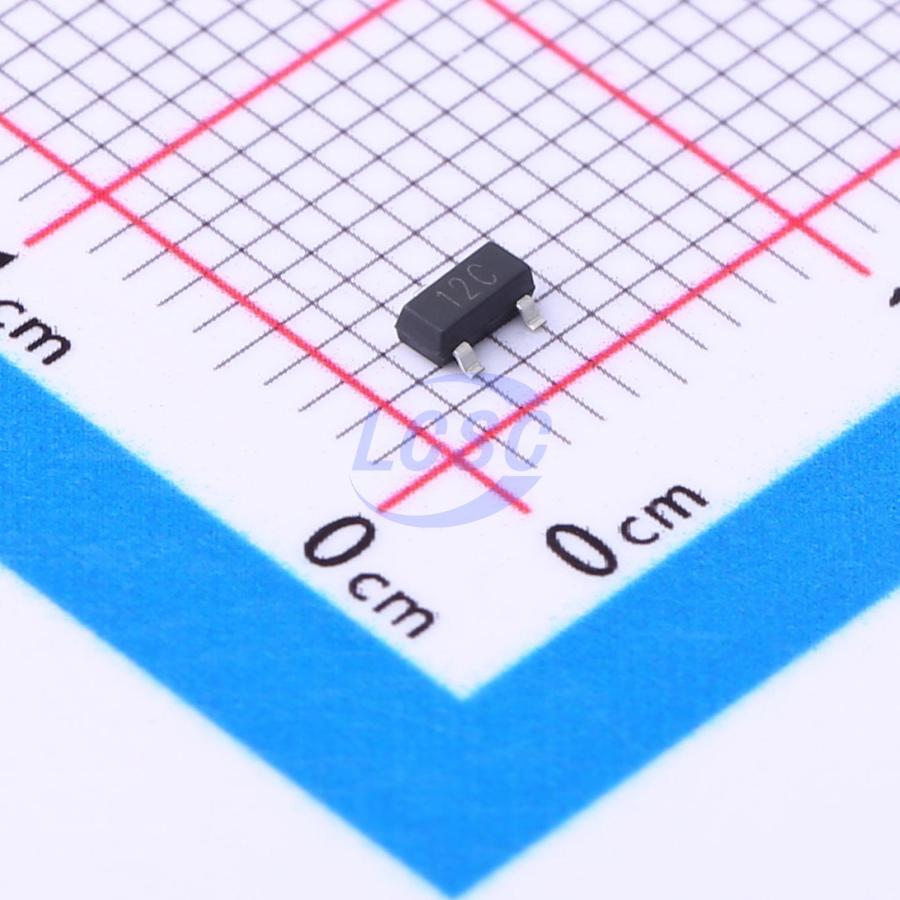

SM12C
10VC Clamp 8A@8/20us Ipp ESD DIODE SOT-23
SOT-23RoHSActive
ESD DIODE 12VWM 10VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SM12C
- Store part #
- C2923384
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,510 in stock
#C2923384
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.36 | ₹83.60 |
| 100+ | ₹6.64 | ₹664.00 |
| 300+ | ₹5.78 | ₹1,734.00 |
| 3,000+ | ₹4.55 | ₹13,650.00 |
| 6,000+ | ₹4.04 | ₹24,240.00 |
| 9,000+ | ₹3.77 | ₹33,930.00 |
10 × ₹8.36
₹83.60
excl. GST
₹98.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SM12C
₹83.60 for 10 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Voltage - Breakdown
- 17.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- Cellular Handsets and Accessories
- Notebooks and Handhelds
- Portable Instrumentation
- Set Top Box
Key features
- 80W peak pulse power (8/20us)
- Ultralow leakage: nA level
- Operating voltage: 12V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC61000 - 4 - 5 (Lightning) 8A (8/20μs)
- RoHS Compliant
