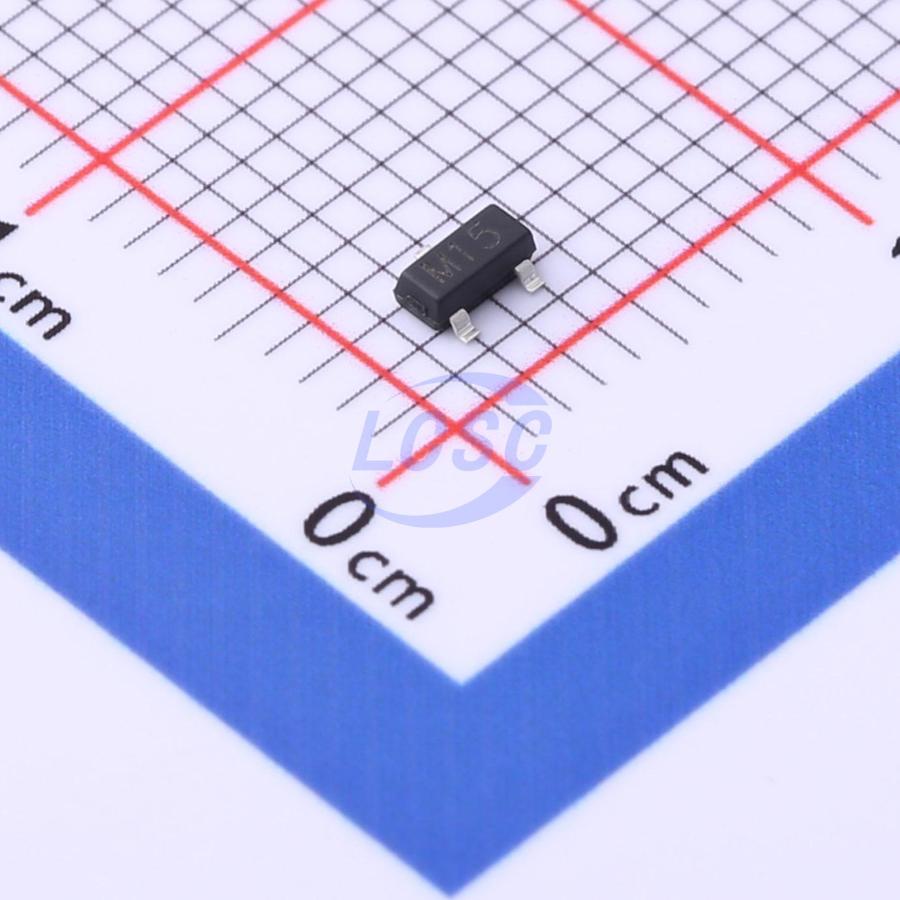

TECH PUBLIC

SM15-02HTG

33VC Clamp ESD DIODE SOT-23

SOT-23RoHSActive

ESD DIODE 15VWM 33VC SOT-23

Manufacturer: TECH PUBLIC
Manufacturer part #: SM15-02HTG
Store part #: C2844727
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,080 in stock

#C2844727

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
10+	₹6.63	₹66.30
100+	₹5.36	₹536.00
300+	₹4.72	₹1,416.00
3,000+	₹3.64	₹10,920.00
6,000+	₹3.25	₹19,500.00
9,000+	₹3.07	₹27,630.00

Quantity (min 10, multiples of 10)

10 × ₹6.63

₹66.30

excl. GST

₹78.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SM15-02HTG

₹66.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 33V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 12A@8/20us
Peak Pulse Power Dissipation (Ppp): 380W@8/20us
Number of Channels: 2
Voltage - Breakdown: 16V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 15V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.027 g

Overview

Applications

Cellular Handsets and Accessories
Notebooks and Handhelds
Portable Instrumentation
Set Top Box Industrial Controls

Key features

380W peak pulse power(8/20μs)
Protects one bi-directional or two uni-directional lines
Ultra low leakage: nA level
Operating voltage: 15V
Low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 12A (8/20μs)
RoHS Compliant
