TECH PUBLICDatasheet (PDF)

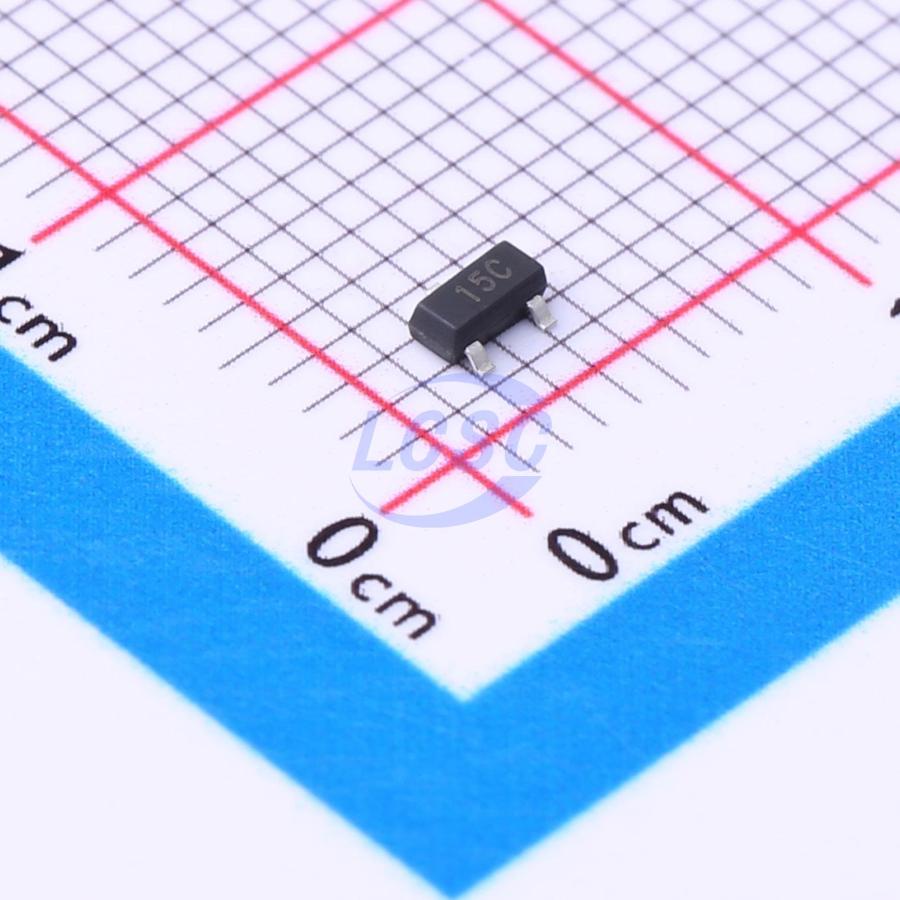

SM15C
nan
SOT-23RoHSActive
15VWM 38VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SM15C
- Store part #
- C2923385
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,840 in stock
#C2923385
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.79 | ₹77.90 |
| 100+ | ₹6.32 | ₹632.00 |
| 300+ | ₹5.58 | ₹1,674.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.09 | ₹24,540.00 |
| 9,000+ | ₹3.86 | ₹34,740.00 |
10 × ₹7.79
₹77.90
excl. GST
₹91.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SM15C
₹77.90 for 10 + GST
Specifications
- Clamping Voltage
- 38V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 16.5V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- Cellular Handsets and Accessories
- Notebooks and Handhelds
- Portable Instrumentation
- Set Top Box
- Industrial Controls
Key features
- 150W peak pulse power(8/20μs)
- Ultra low leakage: nA level
- Operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC61000 - 4 - 5 (Lightning) 5A (8/20μs)
- RoHS Compliant
