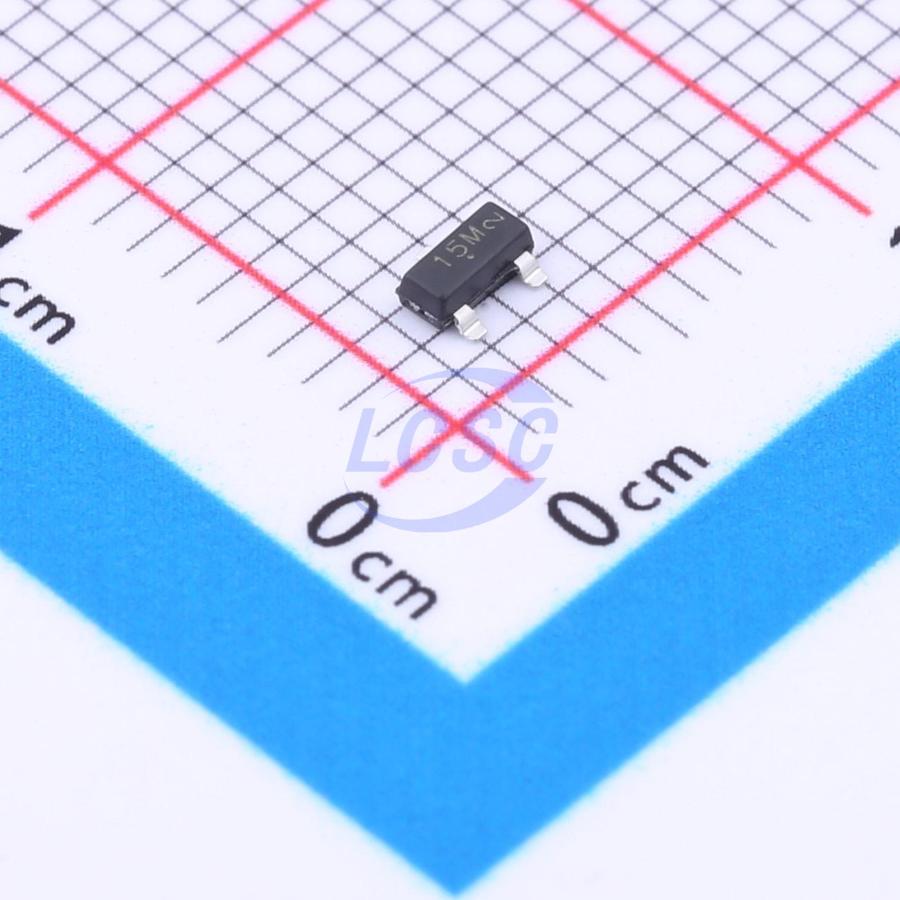

SM15T1G
24VC Clamp 10A@8/20us Ipp ESD DIODE SOT-23
ESD DIODE 15VWM 24VC SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- SM15T1G
- Store part #
- C894317
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
86 in stock
#C894317
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.26 | ₹101.26 |
| 10+ | ₹81.75 | ₹817.50 |
| 30+ | ₹71.98 | ₹2,159.40 |
| 100+ | ₹62.23 | ₹6,223.00 |
| 500+ | ₹56.37 | ₹28,185.00 |
| 1,000+ | ₹53.34 | ₹53,340.00 |
1 × ₹101.26
₹101.26
excl. GST
₹119.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SM15T1G
₹101.26 for 1 + GST
Specifications
- Clamping Voltage
- 24V
- Peak Pulse Current (Ipp)
- 10A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W
- Number of Channels
- 2
- Voltage - Breakdown
- 16.7V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.031 g
Overview
These dual monolithic silicon surge protection diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common anode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium.
Applications
- Computer Interface Protection
- Microprocessor Protection
Key features
- SOT−23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration
- Working Peak Reverse Voltage Range - 5.0 V to 36 V
- Peak Power - 300 Watt (8/20 μs)
- Low Leakage - 1.0 μA
- Flammability Rating UL 94 V - 0
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These are Pb - Free Devices
