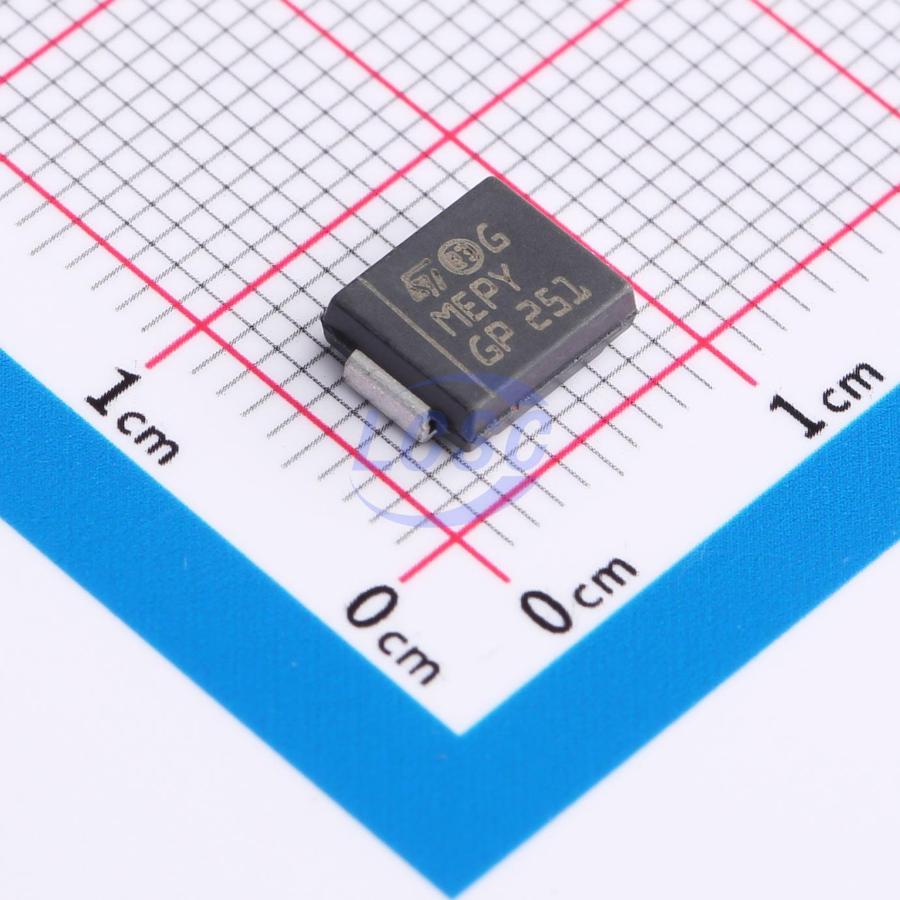

SM15T27AY
48.3VC Clamp 207A@8/20us Ipp TVS DIODE SMC
TVS DIODE 23.1VWM 48.3VC SMC
- Manufacturer
- ST
- Manufacturer part #
- SM15T27AY
- Store part #
- C2970741
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C2970741
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹279.95 | ₹279.95 |
| 10+ | ₹234.65 | ₹2,346.50 |
| 30+ | ₹206.52 | ₹6,195.60 |
| 100+ | ₹177.55 | ₹17,755.00 |
| 500+ | ₹164.45 | ₹82,225.00 |
| 1,000+ | ₹158.87 | ₹1,58,870.00 |
1 × ₹279.95
₹279.95
excl. GST
₹330.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM15T27AY
₹279.95 for 1 + GST
Specifications
- Clamping Voltage
- 48.3V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 207A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 25.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 23.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
Overview
The SM15TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637 - 2 and against electrostatic discharges according to ISO 10605. The Planar technology makes it compatible with high - end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
Applications
- Protects sensitive automotive circuits against surges and ESD
Key features
- AEC - Q101 qualified
- Peak pulse power: 1500 W (10/1000 μs) and 10 kW (8/20 μs)
- Stand - off voltage range from 5.8 V to 70 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 ℃ and 1 μA at 85 ℃
- Operating Tj max: 150 ℃
- High power capability at Tj max.: up to 1250 W (10/1000 μs)
- Lead finishing: matte tin plating
