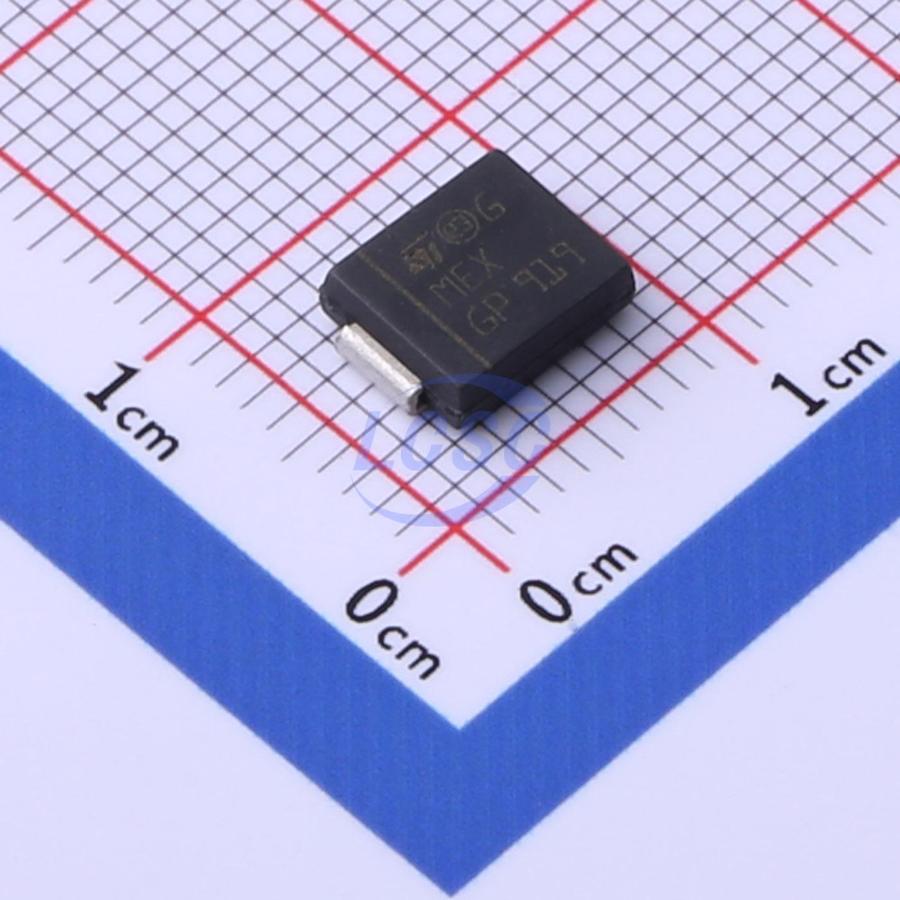

SM15T39A
69.7VC Clamp 28A@8/20us Ipp TVS DIODE SMC
TVS DIODE 37.1VWM 69.7VC SMC
- Manufacturer
- ST
- Manufacturer part #
- SM15T39A
- Store part #
- C1976564
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
246 in stock
#C1976564
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.16 | ₹101.16 |
| 10+ | ₹82.85 | ₹828.50 |
| 30+ | ₹73.92 | ₹2,217.60 |
| 100+ | ₹64.75 | ₹6,475.00 |
| 500+ | ₹59.31 | ₹29,655.00 |
| 1,000+ | ₹56.69 | ₹56,690.00 |
1 × ₹101.16
₹101.16
excl. GST
₹119.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM15T39A
₹101.16 for 1 + GST
Specifications
- Clamping Voltage
- 69.7V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 143A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 41V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 37.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.403 g
Overview
The SM15T TVS series are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 1500 W 10/1000 μs. This planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
Key features
- Peak pulse power: 1500 W (10/1000 μs) up to 10 kW (8/20 μs)
- Stand-off voltage range from 5 V to 188 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 °C
- Operating Tj max: 150 °C
- High power capability at Tj max.: up to 1250 W (10/1000 µs)
- Lead finishing: matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1.5SMC43A/TR13#C522086Brightking · SMC(DO-214AB) | Brightking | SMC(DO-214AB) | 2,835 | ₹21.08 · 2,835 in stock | View |
 | 1.5SMC43A(MS)#C22365416MSKSEMI · SMC | MSKSEMI | SMC | 1,005 | ₹15.27 · 1,005 in stock | View |
 | SZ1.5SMC43AT3G#C1973329Littelfuse · SMC | Littelfuse | SMC | 8 | ₹115.39 · 8 in stock | View |
 | 1.5SMC43A#C22433728Littelfuse · DO-214AB | Littelfuse | DO-214AB | 18 | ₹80.61 · 18 in stock | View |
 | SMCJ36A#C2687515Shikues · SMC | Shikues | SMC | 3,090 | ₹18.79 · 3,090 in stock | View |
