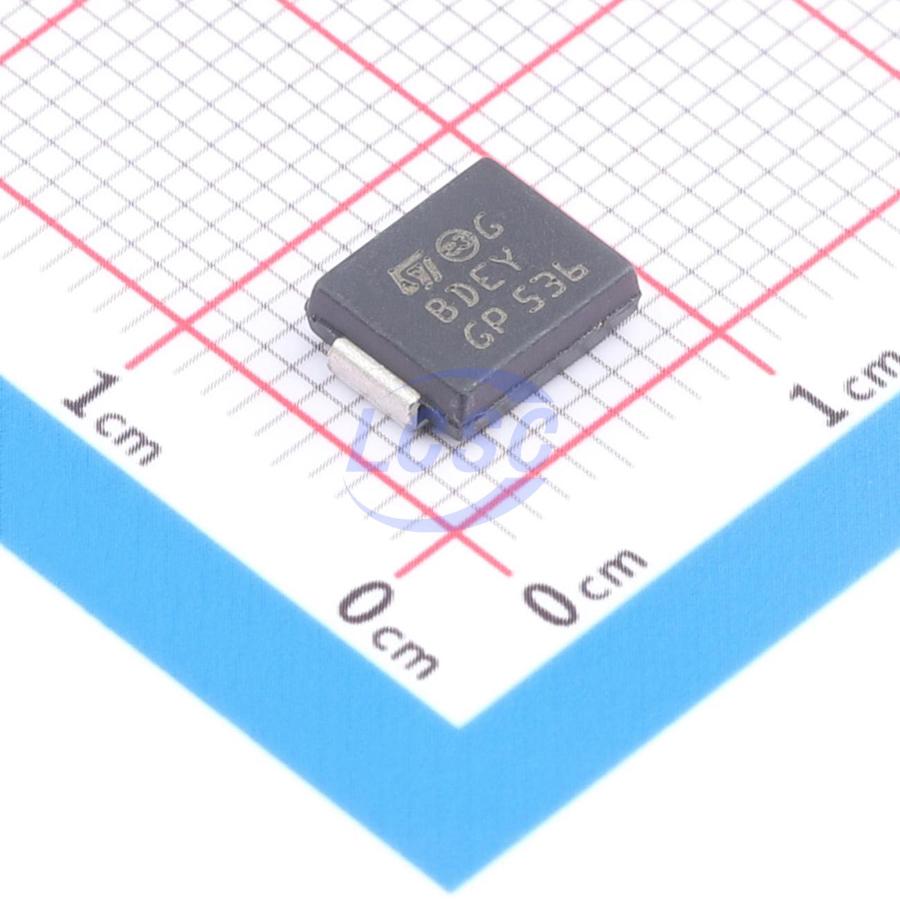

SM15T6V8CAY
13.4VC Clamp 746A@8/20us Ipp TVS DIODE SMC
- Manufacturer
- ST
- Manufacturer part #
- SM15T6V8CAY
- Store part #
- C3710453
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C3710453
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹316.40 | ₹316.40 |
| 10+ | ₹311.02 | ₹3,110.20 |
| 30+ | ₹307.58 | ₹9,227.40 |
| 100+ | ₹303.93 | ₹30,393.00 |
1 × ₹316.40
₹316.40
excl. GST
₹373.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM15T6V8CAY
₹316.40 for 1 + GST
Specifications
- Clamping Voltage
- 13.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 746A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 6.45V
- type
- TVS
- Reverse Leakage Current (Ir)
- 500uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.456 g
Overview
The SM15TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637 - 2 and against electrostatic discharges according to ISO 10605. The Planar technology makes it compatible with high - end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
Applications
- Protects sensitive automotive circuits against surges and ESD
Key features
- AEC - Q101 qualified
- Peak pulse power: 1500 W (10/1000 μs) and 10 kW (8/20 μs)
- Stand - off voltage range from 5.8 V to 70 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 ℃ and 1 μA at 85 ℃
- Operating Tj max: 150 ℃
- High power capability at Tj max.: up to 1250 W (10/1000 μs)
- Lead finishing: matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM15T6V8CA#C133702ST · SMC | ST | SMC | 2 | ₹95.49 · 2 in stock | View |
 | SMCJ6.0CA-E3/57T#C1973553VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 15 | ₹107.55 · 15 in stock | View |
| SM15T6V8CA-E3/9AT#C1980981VISHAY · DO-214AB(SMCJ) | VISHAY | DO-214AB(SMCJ) | On request | ₹48.51 · 0 in stock | View | |
| SM15T6V8CA-E3/57T#C1982854VISHAY · DO-214AB(SMCJ) | VISHAY | DO-214AB(SMCJ) | On request | ₹51.74 · 0 in stock | View | |
| SMCJ6.0CA-Q#C1517964BOURNS · SMC(DO-214AB) | BOURNS | SMC(DO-214AB) | On request | ₹45.14 · 0 in stock | View | |
