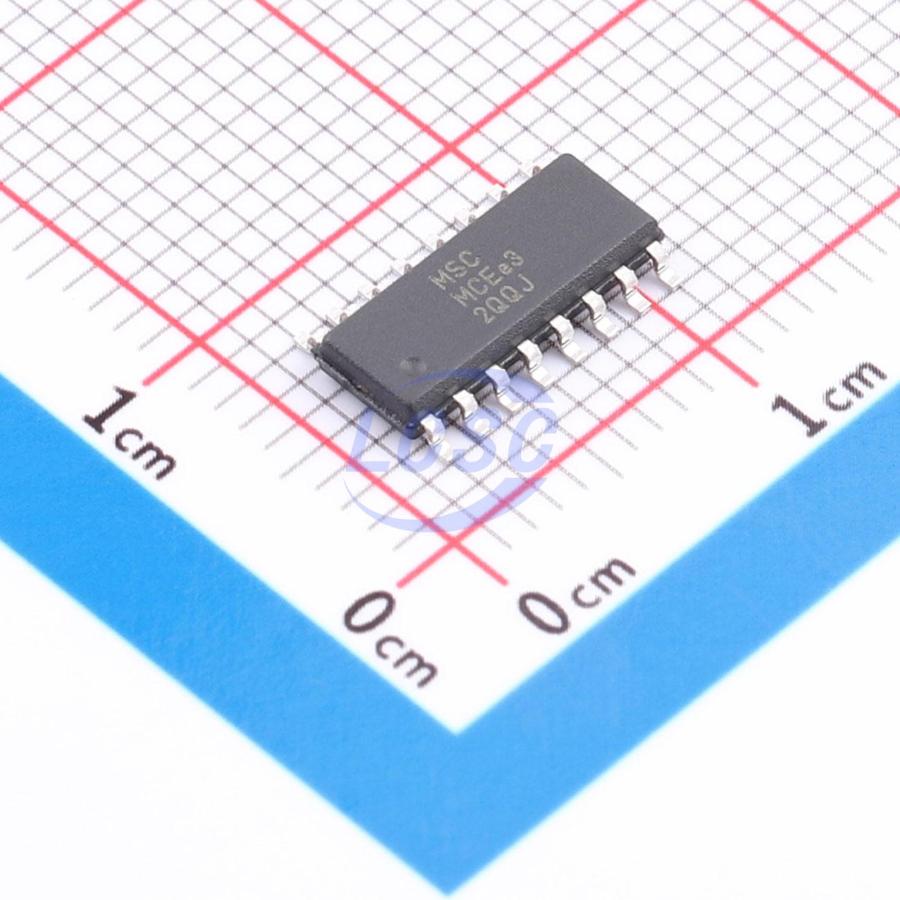

SM16LC24E3/TR13
55VC Clamp 5A@8/20us Ipp TVS DIODE SO-16
- Manufacturer
- MICROCHIP
- Manufacturer part #
- SM16LC24E3/TR13
- Store part #
- C2449507
- Package / case
- SO-16
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2449507
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹952.44 | ₹952.44 |
| 10+ | ₹928.07 | ₹9,280.70 |
| 30+ | ₹911.96 | ₹27,358.80 |
| 100+ | ₹895.64 | ₹89,564.00 |
1 × ₹952.44
₹952.44
excl. GST
₹1,123.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM16LC24E3/TR13
₹952.44 for 1 + GST
Specifications
- Clamping Voltage
- 55V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 500W
- Number of Channels
- 8
- Voltage - Breakdown
- 26.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.75 g
Overview
This 16 pin 8-line Low Capacitance Unidirectional array is designed for use in applications where protection is required at the board level from voltage transients caused by electrostatic discharge (ESD) as defined in IEC 1000 - 4 - 2, electrical fast transients (EFT) per IEC 1000 - 4 - 4 and effects of secondary lighting. These TRANSIENT VOLTAGE SUPPRESSOR (TVS) Diode Arrays have a peak power of 500 watts for an 8/20 μsec pulse and are designed to protect 3.0/3.3 volt components such as DRAM’s, SRAM’s, CMOS, HCMOS, HSIC, and low voltage interfaces up to 24 volts.
Applications
- WAN Equipment: Multiplexers, Routers, ISP, CSU/DSU
- Multi - mode Transceiver Protection
- 1/O Transceivers
Key features
- Protects 3.0/3.3 up through 24 V Components
- Protects 8 lines Unidirectional
- Provides electrically isolated protection
- SO - 16 Packaging
- RoHS Compliant devices available by adding “e3” suffix
- Low Capacitance Unidirectional TVS Array (8)
- Protects: DRAM’s, SRAM’s, CMOS, HCMOS, HSIC
- RS - 232, RS - 422, RS - 423, RS - 449 data rates: 10 Mbs
- WAN Equipment: Multiplexers, Routers, ISP, CSU/DSU
- Multi - mode Transceiver Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SM16LC24/TR13#C2448521MICROCHIP · SOP-16 | MICROCHIP | SOP-16 | On request | ₹1,094.16 · 0 in stock | View | |
