VBsemi ElecDatasheet (PDF)

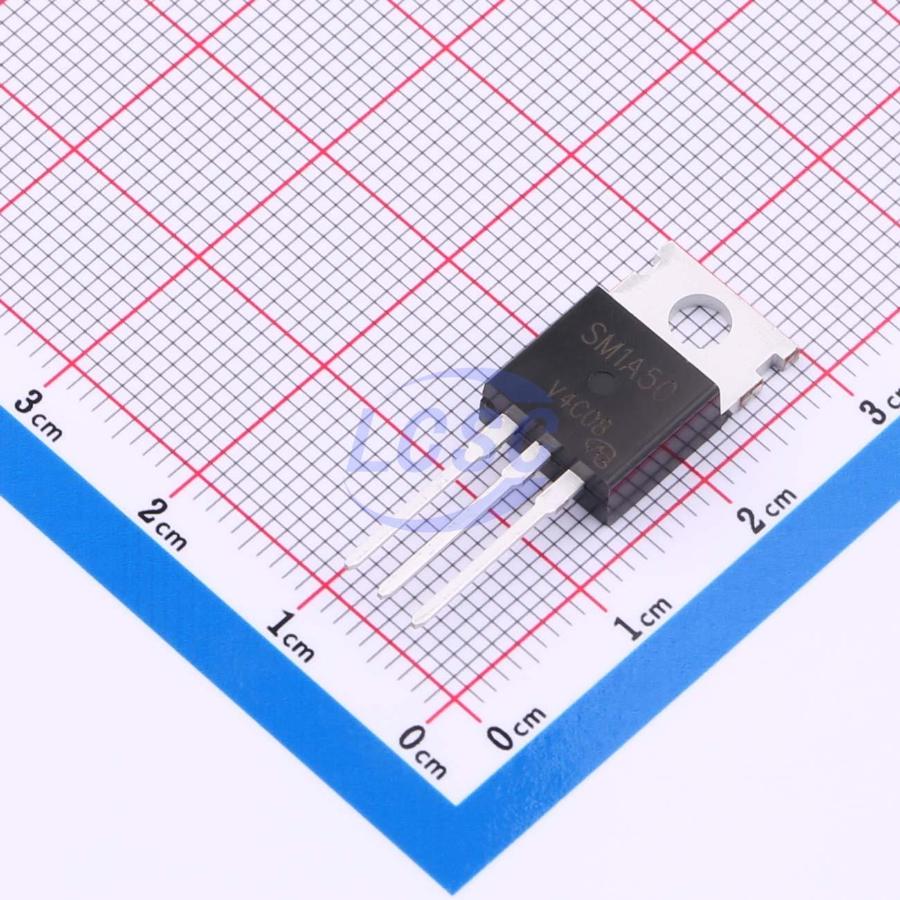

SM1A50NHF-VB
N-Channel 100V 180A 250W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 100V 180A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SM1A50NHF-VB
- Store part #
- C20755259
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C20755259
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹252.90 | ₹252.90 |
| 10+ | ₹215.73 | ₹2,157.30 |
| 50+ | ₹192.42 | ₹9,621.00 |
| 100+ | ₹168.68 | ₹16,868.00 |
| 500+ | ₹157.75 | ₹78,875.00 |
| 1,000+ | ₹153.14 | ₹1,53,140.00 |
1 × ₹252.90
₹252.90
excl. GST
₹298.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SM1A50NHF-VB
₹252.90 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 3.07nF
- Current - Continuous Drain(Id)
- 180A
- Ciss-Input Capacitance
- 5.78nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 305pF
- RDS(on)
- 3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 125nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.1 g
Overview
Applications
- Mobile computing applications
- Load switch
- Notebook adapter switch
- DC/DC converter
Key features
- Trench power MOSFET
- Low thermal resistance package
- AEC-Q101 qualified
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
- RoHS compliant
- Halogen-free
