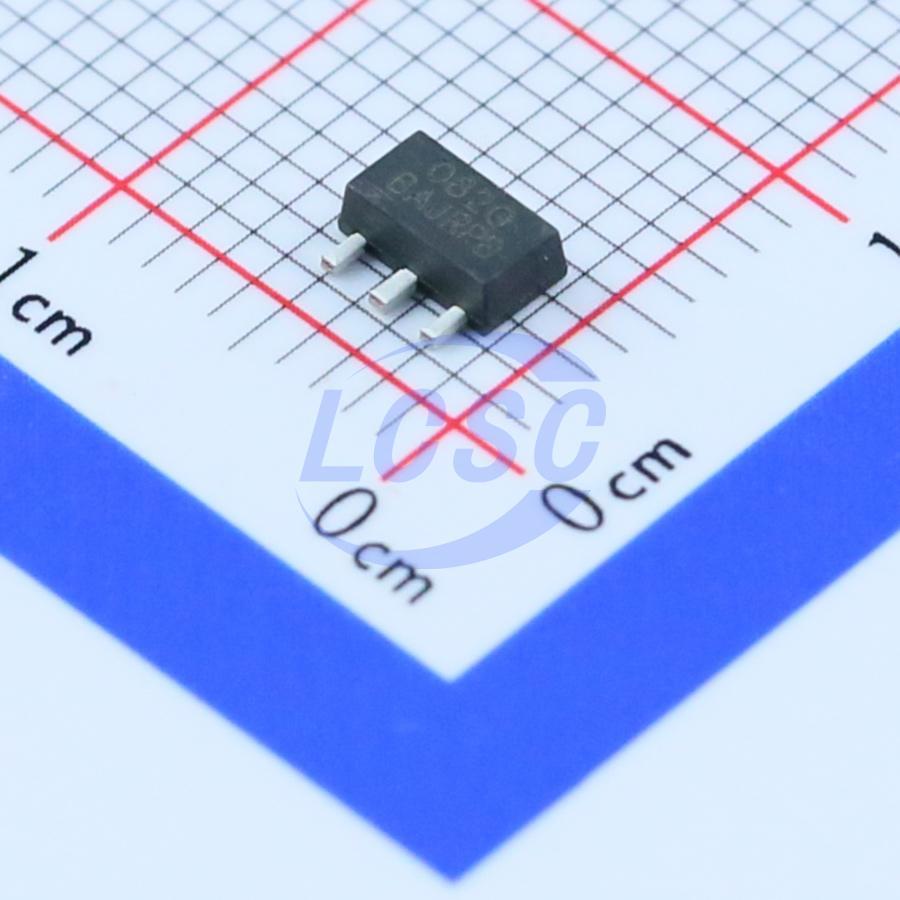

Shenzhen Sunmoon Micro

SM2082G

LED Driver IC 1 Output TRIAC Dimming 60mA SOT-89

SOT-89ROHS CompliantActive

Single-channel LED constant current drive control chip

Manufacturer: Shenzhen Sunmoon Micro
Manufacturer part #: SM2082G
Store part #: C112023
Package / case: SOT-89
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,960 in stock

#C112023

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.16	₹71.60
100+	₹5.79	₹579.00
300+	₹5.12	₹1,536.00
1,000+	₹4.60	₹4,600.00
4,000+	₹3.89	₹15,560.00
8,000+	₹3.68	₹29,440.00

Quantity (min 10, multiples of 10)

10 × ₹7.16

₹71.60

excl. GST

₹84.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

SM2082G

₹71.60 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Over-Temperature Protection (OTP)
Voltage - Input(AC): 120VAC~220VAC
Operating temperature: -40℃~+150℃
Number of Channels: 1
Type: AC-DC
Output Current: 60mA
Constant Current Accuracy: 4%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.141 g

Overview

SM2082G is a single-channel LED constant-current driver control IC. Using patented constant-current setting and control technology, the output current is set by an external Rext resistor in the range of 5mA ~ 60mA, and the output current does not vary with the voltage at the chip's OUT port, providing excellent constant-current performance. The system architecture is simple, requiring minimal external components, resulting in a low solution cost.
