STDatasheet (PDF)

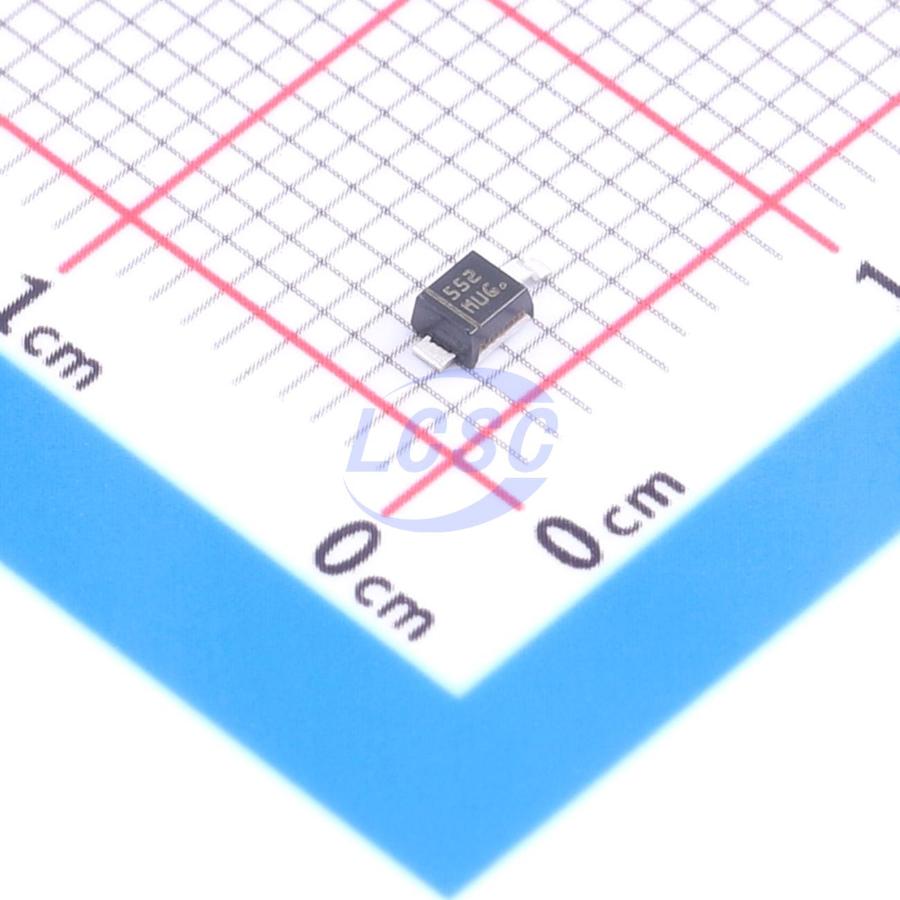

SM2T18A
26VC Clamp 7A@10/1000us Ipp TVS DIODE DO-216AA
DO-216AAROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- SM2T18A
- Store part #
- C1974950
- Package / case
- DO-216AA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C1974950
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.26 | ₹107.26 |
| 10+ | ₹105.54 | ₹1,055.40 |
| 30+ | ₹104.25 | ₹3,127.50 |
| 100+ | ₹103.18 | ₹10,318.00 |
1 × ₹107.26
₹107.26
excl. GST
₹126.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
SM2T18A
₹107.26 for 1 + GST
Specifications
- Clamping Voltage
- 26V
- Peak Pulse Current (Ipp)
- 7A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 200W
- Number of Channels
- 1
- Voltage - Breakdown
- 17.1V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
The SM2T series are Transil diodes designed specifically for portable equipment and miniaturized electronics devices subject to ESD transient overvoltages. Fully compatible with pick and place equipment and inspectable soldering joints.
Key features
- High Peak pulse power: 200 W (10/1000 µs ) 1000 W ( 8/20 µs)
- Stand-off voltage range 5 to 24V
- Unidirectional types
- Low clamping factor V_CL/V_BR
- Fast response time
- 1.0mm overall component height
