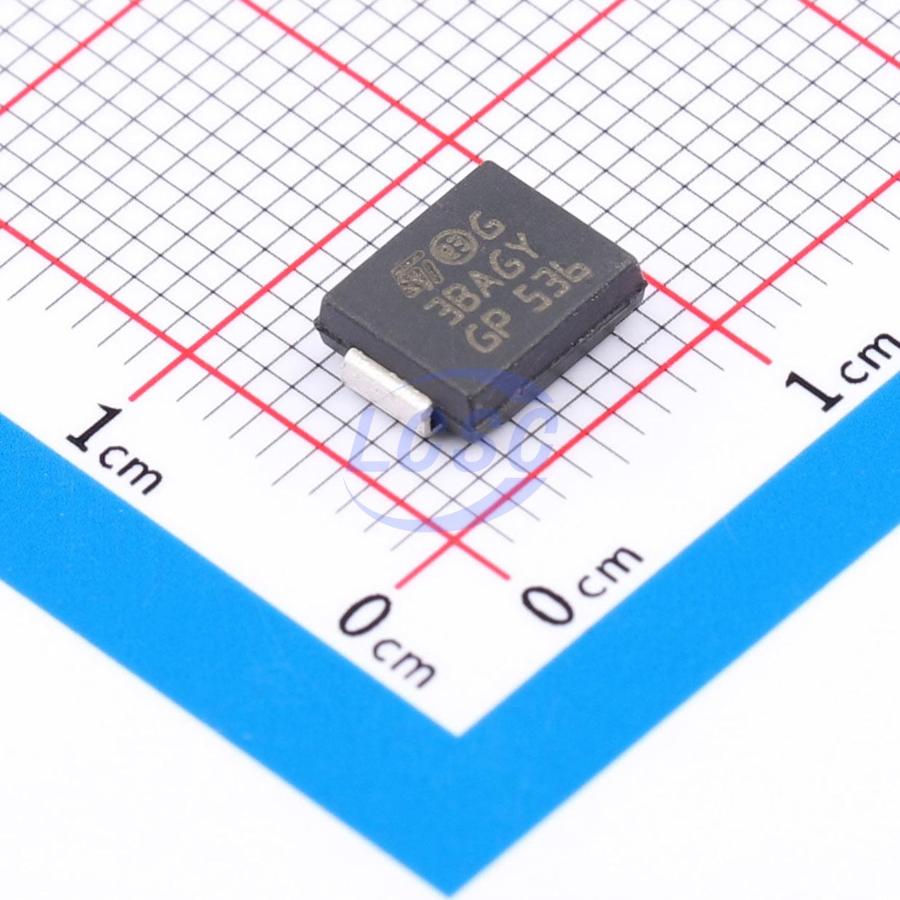

SM30T15CAY

27.2VC Clamp 993A@8/20us Ipp TVS DIODE SMC(DO-214AB)

SMC(DO-214AB)ROHS3 CompliantActive

Manufacturer: ST
Manufacturer part #: SM30T15CAY
Store part #: C1977344
Package / case: SMC(DO-214AB)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

63 in stock

#C1977344

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹350.94	₹350.94
10+	₹295.53	₹2,955.30
30+	₹260.97	₹7,829.10
100+	₹225.35	₹22,535.00
500+	₹209.26	₹1,04,630.00
1,000+	₹202.31	₹2,02,310.00

Quantity (min 1)

1 × ₹350.94

₹350.94

excl. GST

₹414.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

SM30T15CAY

₹350.94 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 27.2V
Operating Temperature: -55℃~+175℃
Peak Pulse Current (Ipp): 993A@8/20us
Peak Pulse Power Dissipation (Ppp): 36kW@8/20us
Number of Channels: 1
Voltage - Breakdown: 15.8V
type: TVS
Polarity: Bidirectional
Reverse Leakage Current (Ir): 200nA
Reverse Stand-Off Voltage (Vrwm): 13V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.372 g

Overview

The SM30TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The Planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
