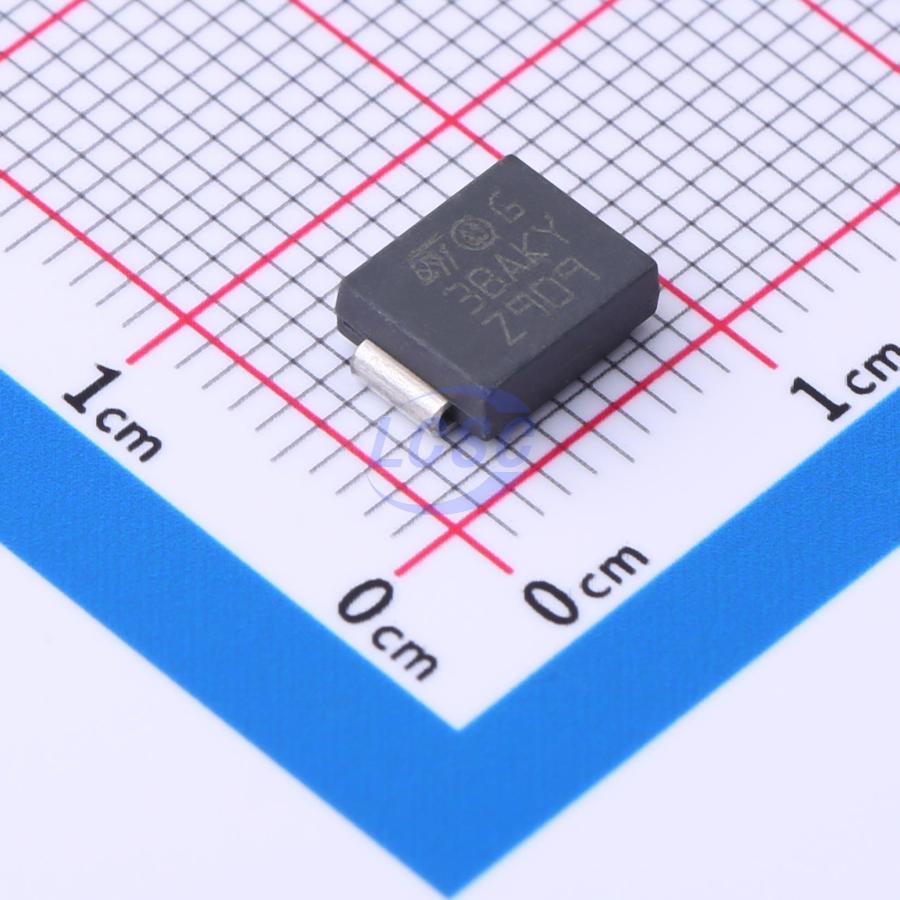

SM30T23CAY
32.4VC Clamp 92.6A Ipp TVS DIODE SMC(DO-214AB)
TVS DIODE 20VWM 32.4VC SMC(DO-214AB)
- Manufacturer
- ST
- Manufacturer part #
- SM30T23CAY
- Store part #
- C3701681
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C3701681
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹731.41 | ₹731.41 |
| 10+ | ₹619.98 | ₹6,199.80 |
| 30+ | ₹553.44 | ₹16,603.20 |
| 100+ | ₹486.45 | ₹48,645.00 |
| 500+ | ₹455.55 | ₹2,27,775.00 |
| 1,000+ | ₹441.59 | ₹4,41,590.00 |
1 × ₹731.41
₹731.41
excl. GST
₹863.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM30T23CAY
₹731.41 for 1 + GST
Specifications
- Clamping Voltage
- 32.4V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 92.6A
- Peak Pulse Power Dissipation (Ppp)
- 3kW
- Number of Channels
- 1
- Voltage - Breakdown
- 22.2V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.48 g
Overview
The SM30TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long-term reliability and stability.
Key features
- AEC-Q101 qualified
- Peak pulse power: 3000 W (10/1000 μs) up to 40 kW (8/20 μs)
- Stand-off voltage range from 5 V to 188 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 °C
- Operating Tj max: 175 °C
- JEDEC registered package outline
- Resin meets UL94, V0
- Lead finishing: matte tin plating
- UL94, V0
- J-STD-020 MSL level 1
- J-STD-002, JESD 22-B102 E3 and MIL-STD-750, method 2026
- JESD-201 class 2 whisker test
- IPC7531 footprint and JEDEC registered package outline
- IEC 61000-4-4 level 4: 4 kV
- ISO 10605, IEC 61000-4-2, C = 150 pF, R = 330 Ω exceeds level 4: 30 kV (air discharge) 30 kV (contact discharge)
- ISO 10605, C = 330 pF, R = 330 Ω exceeds level 4: 30 kV (air discharge) 30 kV (contact discharge)
- ISO 7637-2 (not applicable to parts with VR M lower than battery voltage) Pulse 1: VS = -150 V Pulse 2a: VS = +112 V Pulse 3a: VS = -220 V Pulse3b: VS = +150 V
