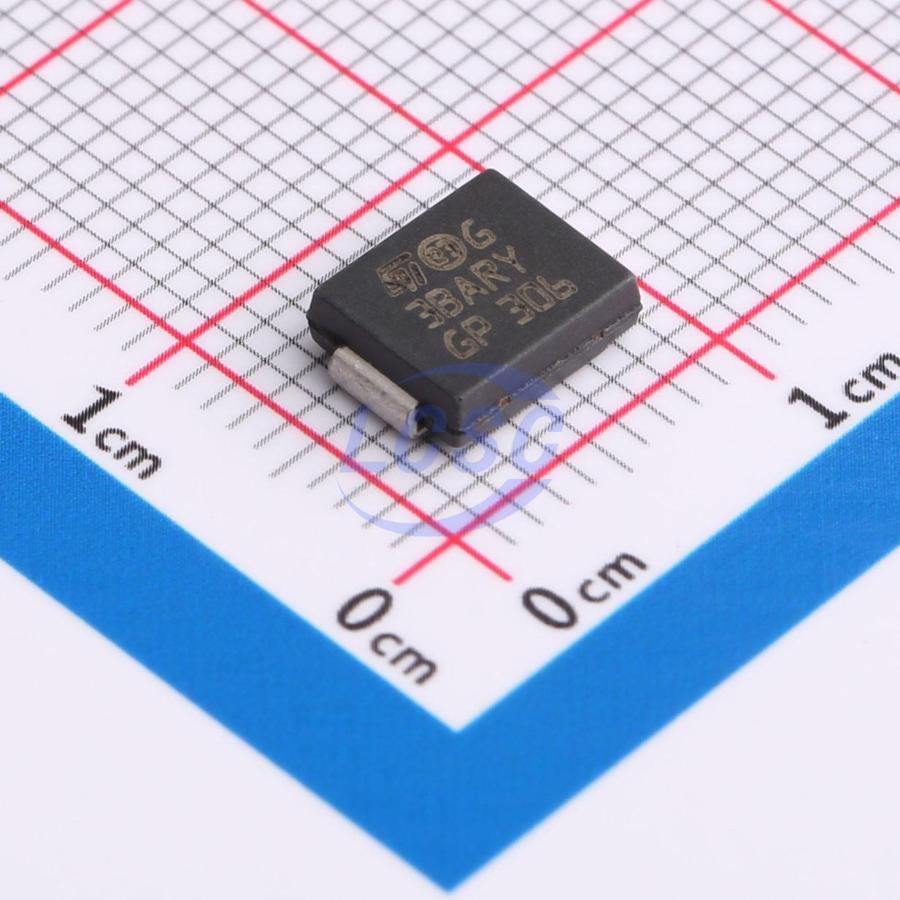

SM30T47CAY
84VC Clamp 43.5A@8/20us Ipp TVS DIODE SMC(DO-214AB)
TVS DIODE 40VWM 84VC SMC(DO-214AB)
- Manufacturer
- ST
- Manufacturer part #
- SM30T47CAY
- Store part #
- C1975903
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C1975903
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹369.88 | ₹369.88 |
| 10+ | ₹310.43 | ₹3,104.30 |
| 30+ | ₹273.07 | ₹8,192.10 |
| 100+ | ₹234.86 | ₹23,486.00 |
| 500+ | ₹217.47 | ₹1,08,735.00 |
| 1,000+ | ₹209.96 | ₹2,09,960.00 |
1 × ₹369.88
₹369.88
excl. GST
₹436.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM30T47CAY
₹369.88 for 1 + GST
Specifications
- Clamping Voltage
- 84V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 469A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 3kW
- Number of Channels
- 1
- Voltage - Breakdown
- 46.7V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.472 g
Overview
The SM30TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The Planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
Key features
- AEC-Q101 qualified
- Peak pulse power: 3000 W (10/1000 μs) up to 36 kW (8/20 μs)
- Stand-off voltage range from 5 V to 48 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 °C
- Operating Tj max: 175 °C
- JEDEC registered package outline
- Resin meets UL94, V0
- Lead finishing: matte tin plating
