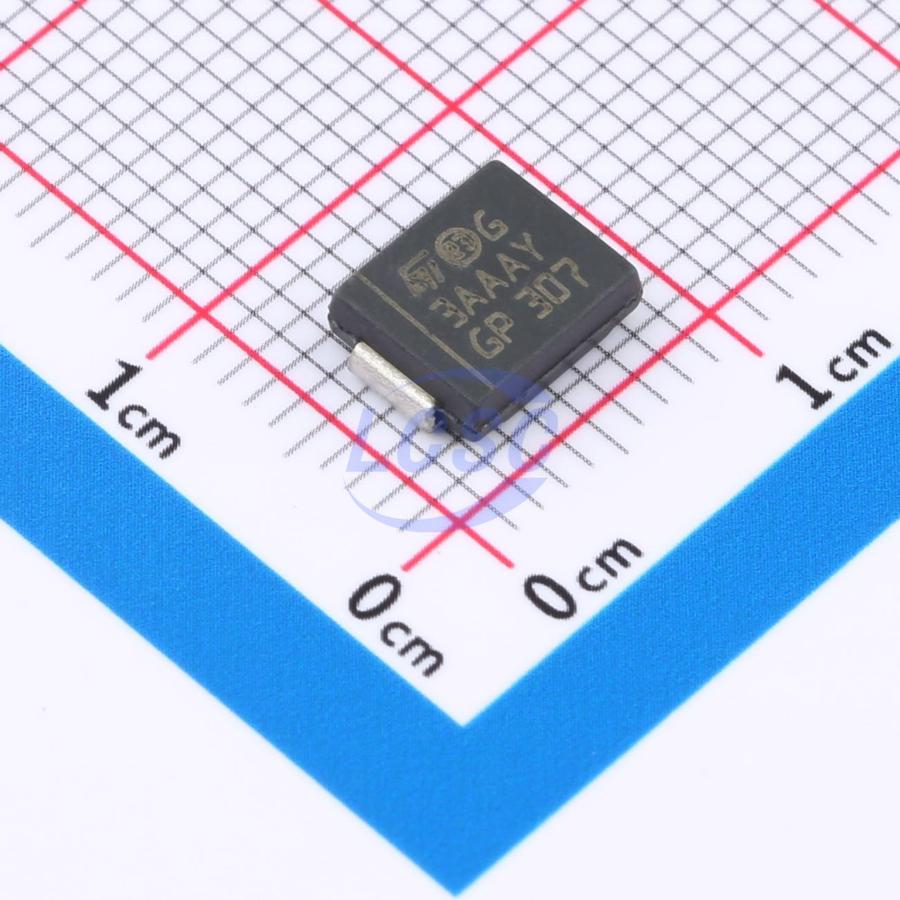

SM30T6.8AY
14.4VC Clamp 1010A@8/20us Ipp TVS DIODE SMC(DO-214AB)
TVS DIODE 5VWM 14.4VC SMC(DO-214AB)
- Manufacturer
- ST
- Manufacturer part #
- SM30T6.8AY
- Store part #
- C1976681
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C1976681
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹215.81 | ₹215.81 |
| 10+ | ₹212.79 | ₹2,127.90 |
| 30+ | ₹210.65 | ₹6,319.50 |
| 100+ | ₹208.72 | ₹20,872.00 |
1 × ₹215.81
₹215.81
excl. GST
₹254.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM30T6.8AY
₹215.81 for 1 + GST
Specifications
- Clamping Voltage
- 14.4V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 1.61kA@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 3kW
- Number of Channels
- 1
- Voltage - Breakdown
- 6.8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 500uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.74 g
Overview
The SM30TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The Planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
Key features
- AEC-Q101 qualified
- Peak pulse power: 3000 W (10/1000 μs) up to 36 kW (8/20 μs)
- Stand-off voltage range from 5 V to 48 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 °C
- Operating Tj max: 175 °C
- JEDEC registered package outline
- Resin meets UL94, V0
- Lead finishing: matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMC30J5.0A#C1977926ST · SMC | ST | SMC | 54 | ₹325.46 · 54 in stock | View |
 | SMDJ5.0A#C1973140Littelfuse · DO-214AB(SMCJ) | Littelfuse | DO-214AB(SMCJ) | On request | ₹150.89 · 0 in stock | View |
