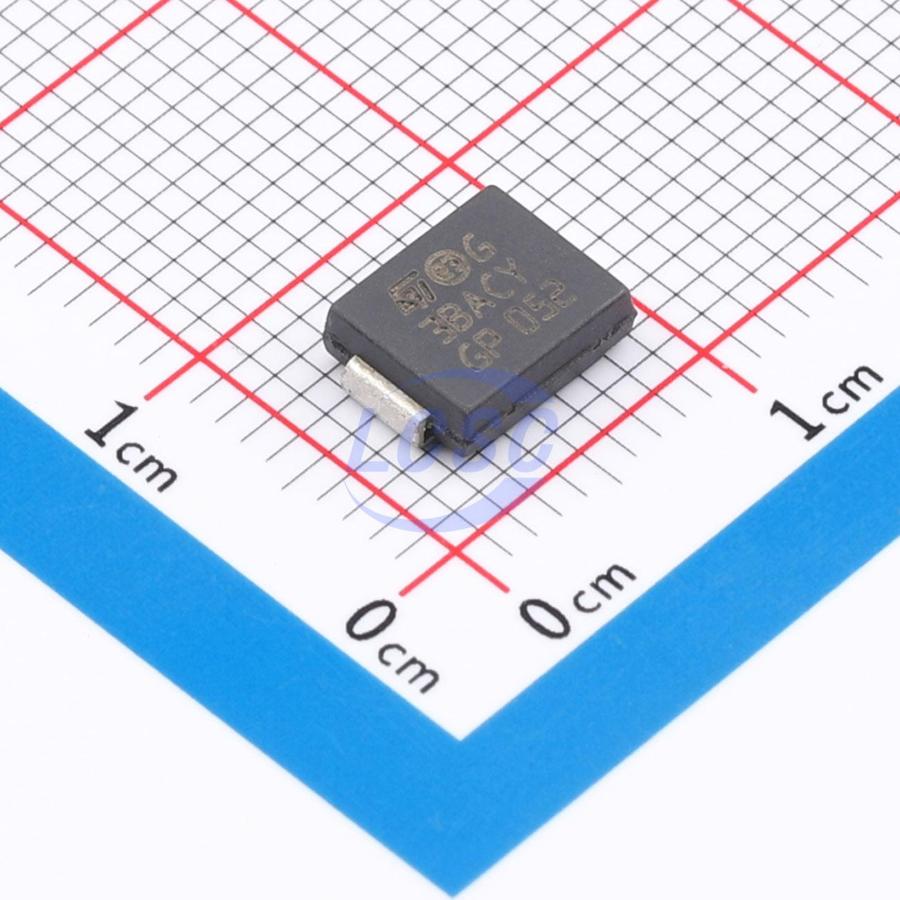

SM30T7.5CAY
15.2VC Clamp 1530A@8/20us Ipp TVS DIODE SMC(DO-214AB)
TVS DIODE 6.5VWM 15.2VC SMC(DO-214AB)
- Manufacturer
- ST
- Manufacturer part #
- SM30T7.5CAY
- Store part #
- C1983740
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C1983740
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹377.40 | ₹377.40 |
| 10+ | ₹316.44 | ₹3,164.40 |
| 30+ | ₹278.44 | ₹8,353.20 |
| 100+ | ₹239.37 | ₹23,937.00 |
| 500+ | ₹221.76 | ₹1,10,880.00 |
| 1,000+ | ₹214.25 | ₹2,14,250.00 |
1 × ₹377.40
₹377.40
excl. GST
₹445.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM30T7.5CAY
₹377.40 for 1 + GST
Specifications
- Clamping Voltage
- 11.2V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 268A
- Peak Pulse Power Dissipation (Ppp)
- 3kW
- Number of Channels
- 1
- Voltage - Breakdown
- 7.13V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 250uA
- Reverse Stand-Off Voltage (Vrwm)
- 6.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
The SM30TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The Planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
Key features
- AEC-Q101 qualified
- Peak pulse power: 3000 W (10/1000 μs) up to 36 kW (8/20 μs)
- Stand-off voltage range from 5 V to 48 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 °C
- Operating Tj max: 175 °C
- JEDEC registered package outline
- Resin meets UL94, V0
- Lead finishing: matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMDJ6.5CA#C3012595PAKER · SMC(DO-214AB) | PAKER | SMC(DO-214AB) | 3,085 | ₹25.43 · 3,085 in stock | View |
 | SMDJ6.5CA#C5125689BORN · SMC(DO-214AB) | BORN | SMC(DO-214AB) | 8,635 | ₹36.01 · 8,635 in stock | View |
 | SMDJ6.5CA#C5267372JKSEMI · SMC(DO214AB) | JKSEMI | SMC(DO214AB) | 255 | ₹15.92 · 255 in stock | View |
 | SMDJ6.5CA#C5310919SUNMATE Elec · SMC(DO-214AB) | SUNMATE Elec | SMC(DO-214AB) | 470 | ₹26.46 · 470 in stock | View |
 | SMDJ6.5CA/TR13#C310144Brightking · SMC(DO-214AB) | Brightking | SMC(DO-214AB) | 2,940 | ₹45.67 · 2,940 in stock | View |
