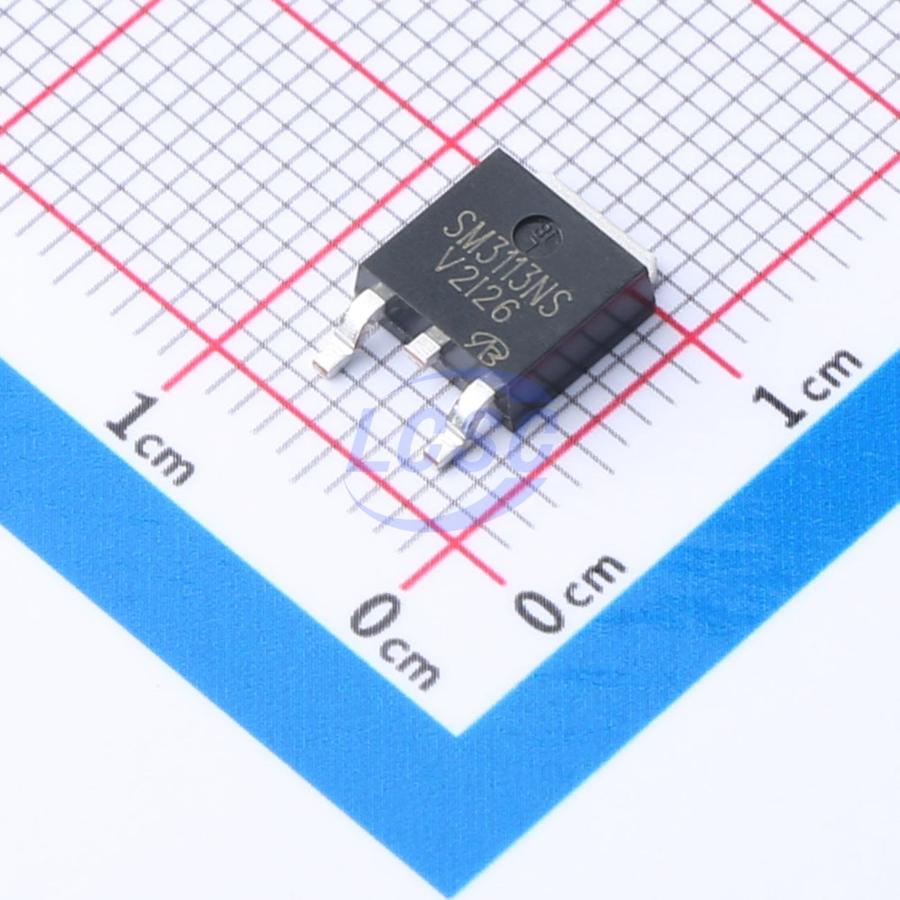

SM3113NSUC-TRG-VB
N-Channel 30V 35.8A 3.75W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 35.8A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SM3113NSUC-TRG-VB
- Store part #
- C5444649
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
61 in stock
#C5444649
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.92 | ₹86.92 |
| 10+ | ₹71.72 | ₹717.20 |
| 30+ | ₹64.11 | ₹1,923.30 |
| 100+ | ₹56.51 | ₹5,651.00 |
| 500+ | ₹43.25 | ₹21,625.00 |
| 1,000+ | ₹40.85 | ₹40,850.00 |
1 × ₹86.92
₹86.92
excl. GST
₹102.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM3113NSUC-TRG-VB
₹86.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 35.8A
- Ciss-Input Capacitance
- 520pF
- Pd - Power Dissipation
- 3.75W
- Reverse Transfer Capacitance (Crss)
- 770pF
- Number
- 1 N-channel
- Gate Charge(Qg)
- 71.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.402 g
Overview
Applications
- OR gate
- Server
- DC/DC
Key features
- Trench Power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per EU Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR3709ZTRPBF-VB#C5438945VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹77.51 · 10 in stock | View |
 | AOD4132-VB#C693178VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 124 | ₹82.98 · 124 in stock | View |
 | AOD492-VB#C693315VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 28 | ₹77.04 · 28 in stock | View |
 | IRLR8726TRPBF-VB#C7463425VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 101 | ₹86.92 · 101 in stock | View |
 | IPD90N03S4L-03-VB#C7463434VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 66 | ₹96.45 · 66 in stock | View |
