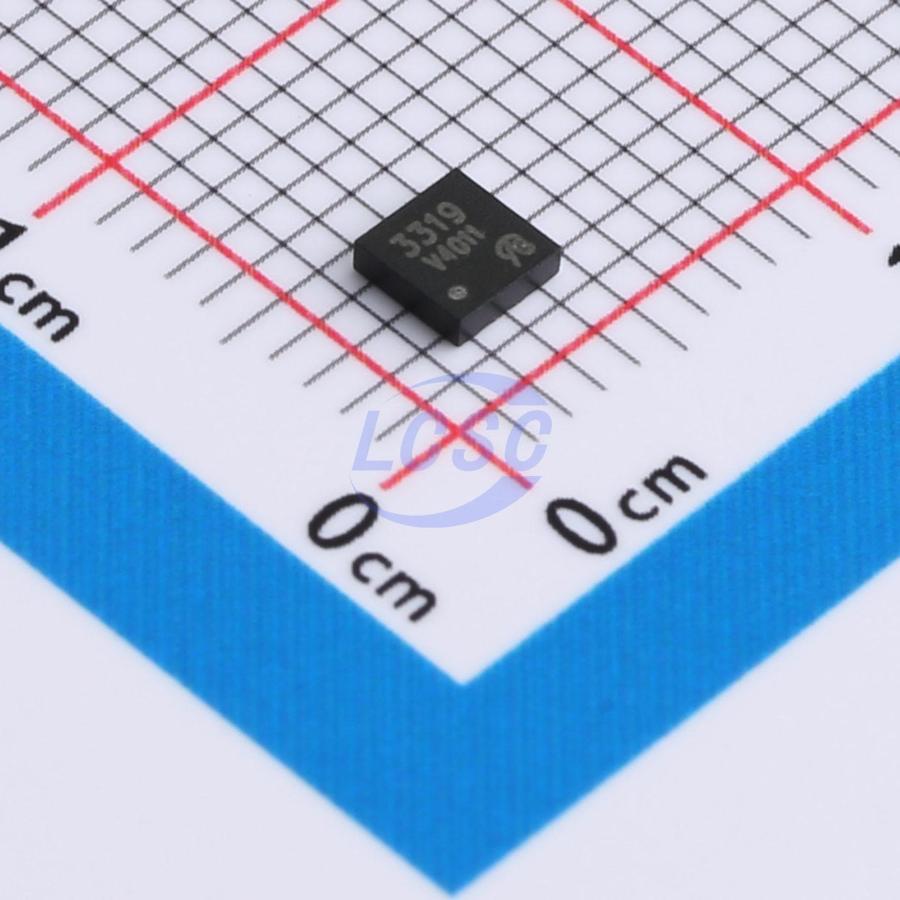

SM3319NSQG-VB
N-Channel 30V 18A 15.6W Surface Mount DFN3x3-8
DFN3x3-8RoHSActive
MOSFET N-CH 30V 18A DFN3x3-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SM3319NSQG-VB
- Store part #
- C29779029
- Package / case
- DFN3x3-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C29779029
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.19 | ₹58.19 |
| 10+ | ₹45.80 | ₹458.00 |
| 30+ | ₹40.34 | ₹1,210.20 |
| 100+ | ₹33.83 | ₹3,383.00 |
| 500+ | ₹30.68 | ₹15,340.00 |
| 1,000+ | ₹29.00 | ₹29,000.00 |
1 × ₹58.19
₹58.19
excl. GST
₹68.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SM3319NSQG-VB
₹58.19 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 95pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 435pF
- Pd - Power Dissipation
- 15.6W
- Reverse Transfer Capacitance (Crss)
- 42pF
- RDS(on)
- 25mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 42nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
Applications
- Notebook computers
- System power
- Load switches
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIS412DN-T1-GE3-VB#C20754941VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 25 | ₹105.36 · 25 in stock | View |
 | AON7408-VB#C22389232VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 50 | ₹60.71 · 50 in stock | View |
 | SSPS7330N-VB#C29779674VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 11 | ₹58.19 · 11 in stock | View |
 | NVTFS5C454NLTAG-VB#C54582107VBsemi Elec · DFN-8L(3x3) | VBsemi Elec | DFN-8L(3x3) | 5 | ₹173.51 · 5 in stock | View |
 | VBQF1410#C7541206VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 60 | ₹101.16 · 60 in stock | View |
