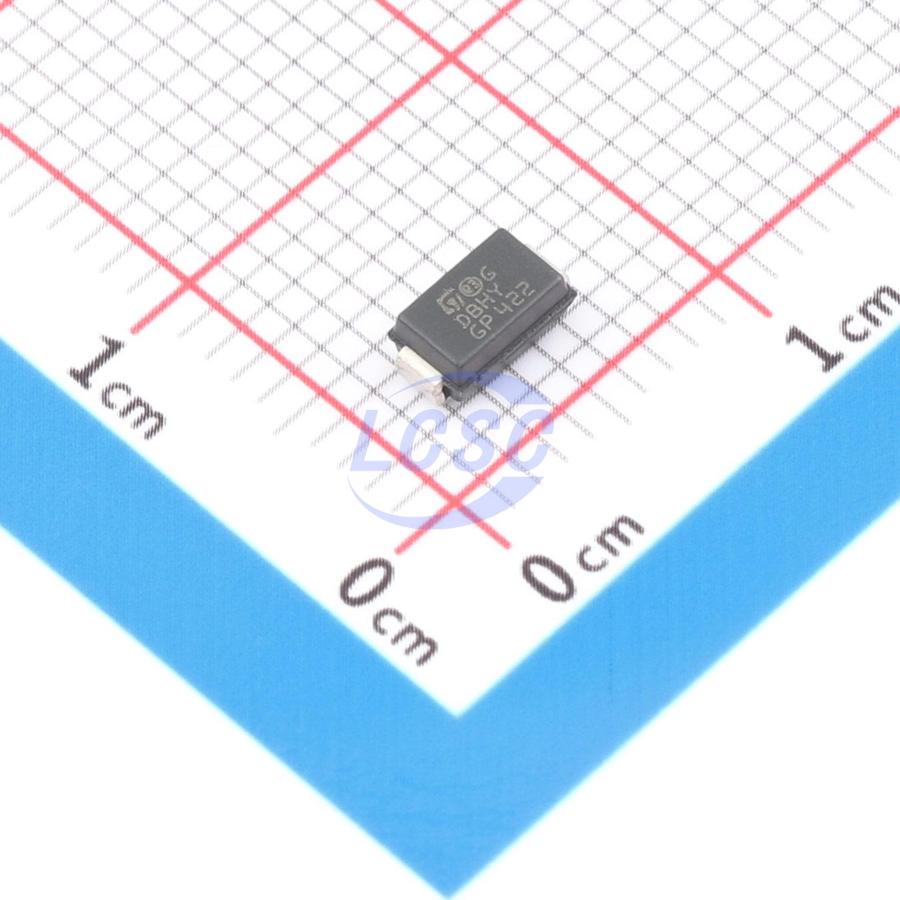

SM4T10CAY
19.5VC Clamp 124A@8/20us Ipp TVS DIODE SMA(DO-214AC)
- Manufacturer
- ST
- Manufacturer part #
- SM4T10CAY
- Store part #
- C3701438
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C3701438
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹207.63 | ₹207.63 |
| 10+ | ₹204.84 | ₹2,048.40 |
| 30+ | ₹203.12 | ₹6,093.60 |
| 100+ | ₹201.19 | ₹20,119.00 |
1 × ₹207.63
₹207.63
excl. GST
₹245.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SM4T10CAY
₹207.63 for 1 + GST
Specifications
- Clamping Voltage
- 19.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 124A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 9.4V
- type
- TVS
- Reverse Leakage Current (Ir)
- 20uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 8.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
The SM4TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The Planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability. SM4TY devices are packaged in SMA (SMA footprint in accordance with IPC 7531 standard).
Key features
- AEC-Q101 qualified
- Peak pulse power: 400 W (10/1000 μs) 2.3 kW (8/20 μs)
- Stand-off voltage range from 5 V to 70 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 °C 1 μA at 85 °C
- Operating Tj max: 150 °C
- JEDEC registered package outline
- Resin meets UL94, V0
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ8.0CA#C116522BOURNS · DO-214AC | BOURNS | DO-214AC | 70 | ₹32.49 · 70 in stock | View |
| SMAJ8.5CA-Q#C1978002BOURNS · SMA(DO-214AC) | BOURNS | SMA(DO-214AC) | On request | ₹19.00 · 0 in stock | View | |
| P4SMA10CA-Q#C1869390BOURNS · SMA(DO-214AC) | BOURNS | SMA(DO-214AC) | On request | ₹17.50 · 0 in stock | View | |
| SMAJ9.0CA-Q#C1869397BOURNS · SMA(DO-214AC) | BOURNS | SMA(DO-214AC) | On request | ₹17.28 · 0 in stock | View | |
| SMAJ9.0C#C3699992Meritek · DO-214AC(SMA) | Meritek | DO-214AC(SMA) | On request | ₹11.54 · 0 in stock | View | |
