VISHAYDatasheet (PDF)

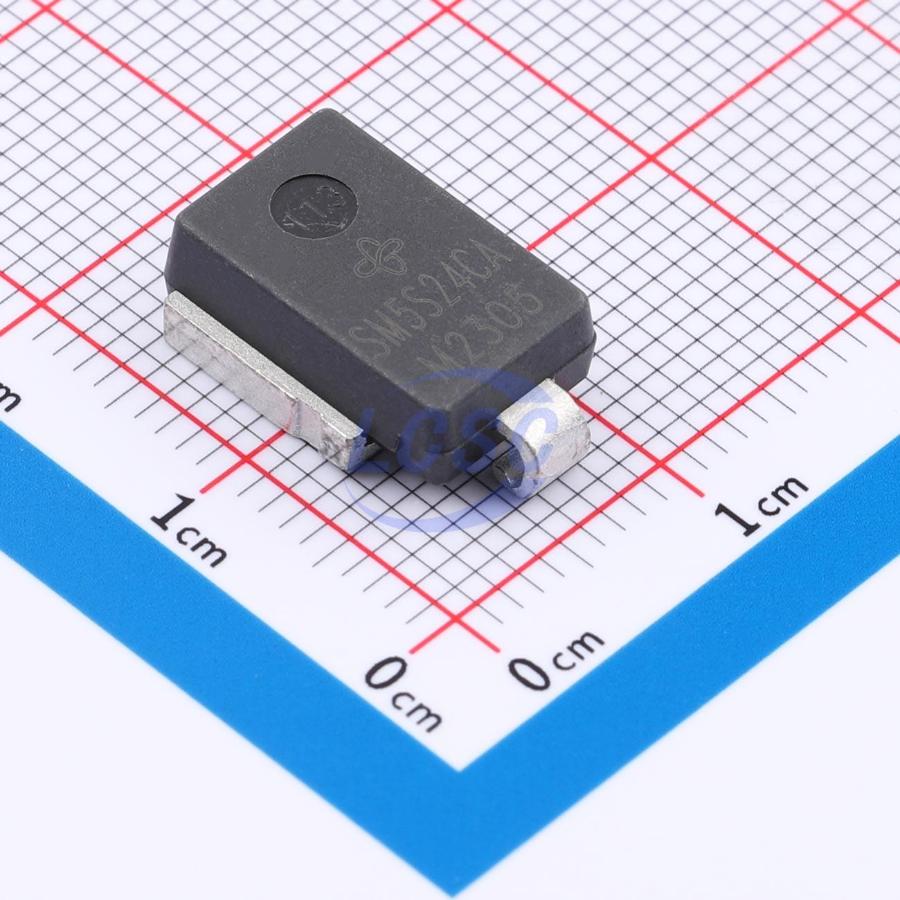

SM5S24CAHM3/I
38.9V 92.5A@10/1000us 3.6kW@10/1000us 29.5V Bidirectional 24V DO-218AB TVS Diodes RoHS
DO-218ABROHS3 CompliantActive
TVS DIODE 24VWM 38.9VC DO-218AB
- Manufacturer
- VISHAY
- Manufacturer part #
- SM5S24CAHM3/I
- Store part #
- C20036302
- Package / case
- DO-218AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C20036302
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹476.31 | ₹476.31 |
| 10+ | ₹469.22 | ₹4,692.20 |
| 30+ | ₹464.49 | ₹13,934.70 |
| 100+ | ₹459.54 | ₹45,954.00 |
1 × ₹476.31
₹476.31
excl. GST
₹562.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SM5S24CAHM3/I
₹476.31 for 1 + GST
Specifications
- Clamping Voltage
- 38.9V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 92.5A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 3.6kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 29.5V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 10uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.24 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lightning, especially for automotive load dump protection application.
Key features
- RoHS compliant junction passivation
- T_J = 175 °C capability suitable for high reliability and automotive requirement COMPLIANT HALOGEN
- Bidirectional FREE
- Low leakage current
- High surge capability
- Meets ISO 7637-2 and ISO 16750-2 surge specification (varied by test condition)
- Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SM5S22CA#C2983277DOWO · DO-218AB | DOWO | DO-218AB | 740 | ₹123.89 · 740 in stock | View | |
 | SM5S24CAQ#C20603568YANGJIE · DO-218AB | YANGJIE | DO-218AB | 682 | ₹145.48 · 682 in stock | View |
| SM5S26CAHM3/I#C20036303VISHAY · DO-218AB | VISHAY | DO-218AB | On request | ₹450.11 · 0 in stock | View | |
| SM5S22CAHM3/I#C20036301VISHAY · DO-218AB | VISHAY | DO-218AB | On request | ₹450.11 · 0 in stock | View | |
