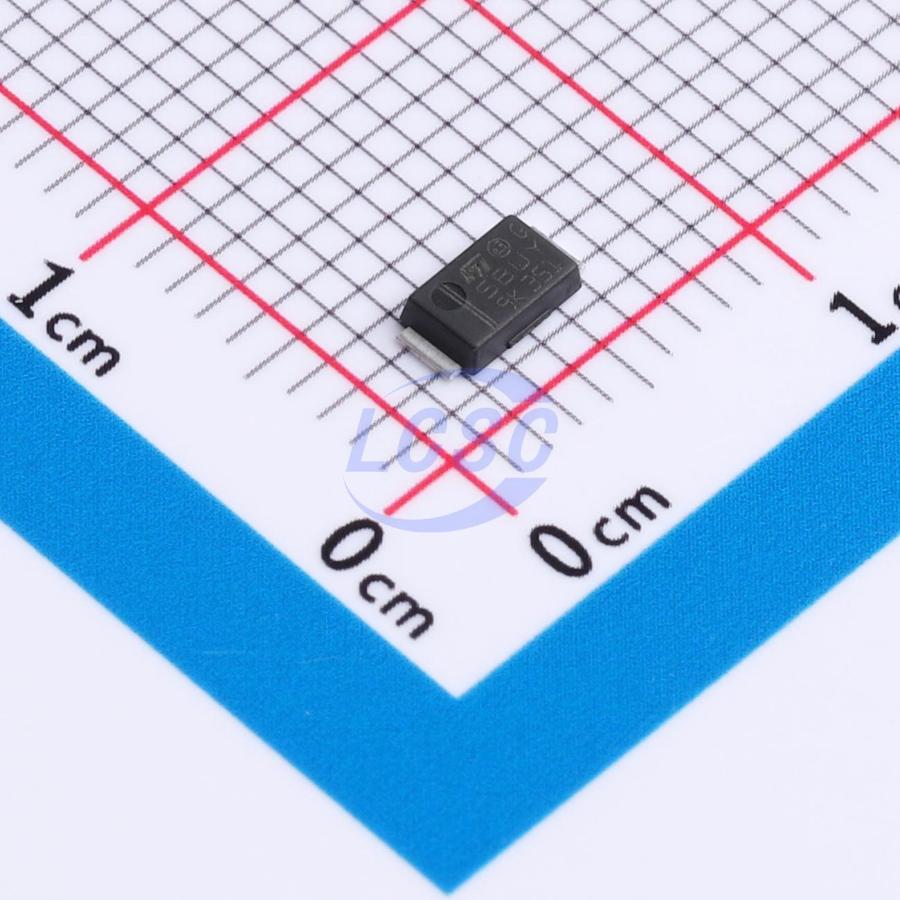

SM6F28AY

The SM6FY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The Planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.

Key features

• AEC-Q101 qualified
• Peak pulse power: 600 W (10/1000 µs) and 4 kW (8/20 µs)
• Stand-off voltage range from 5 V to 36 V
• Unidirectional type
• Low leakage current: 0.2 µA at 25 °C and 1 µA at 85 °C
• Operating Tj max: 175 °C
• High power capability at 175 °C (Tj max.) up to 240 W (10/1000 µs)
• Lead finishing: matte tin platting
• UL94, V0
• J-STD-020 MSL level 1
• J-STD-002, JESD 22-B102 E3 and MIL-STD-750, method 2026 solderable, matte tin plated leads
• JESD-201 class 2 whisker test
• IPC7531 footprint
• JEDEC registered package outline
• IEC 61000-4-4 level 4: 4 kV
• ISO10605, IEC 61000-4-2, C = 150 pF - R = 330 Ω exceeds level 4: 30 kV (air discharge) 30 kV (contact discharge)
• ISO 10605 - C = 330 pF, R = 330 Ω exceeds level 4: 30 kV (air discharge) 30 kV (contact discharge)
• ISO7637-2 (Not applicable to parts with stand-off voltage lower than battery voltage) Pulse1: Vs = -150 V Pulse 2a: Vs = +112 V Pulse 3a: Vs = -220 V Pulse 3b: Vs = +150 V
