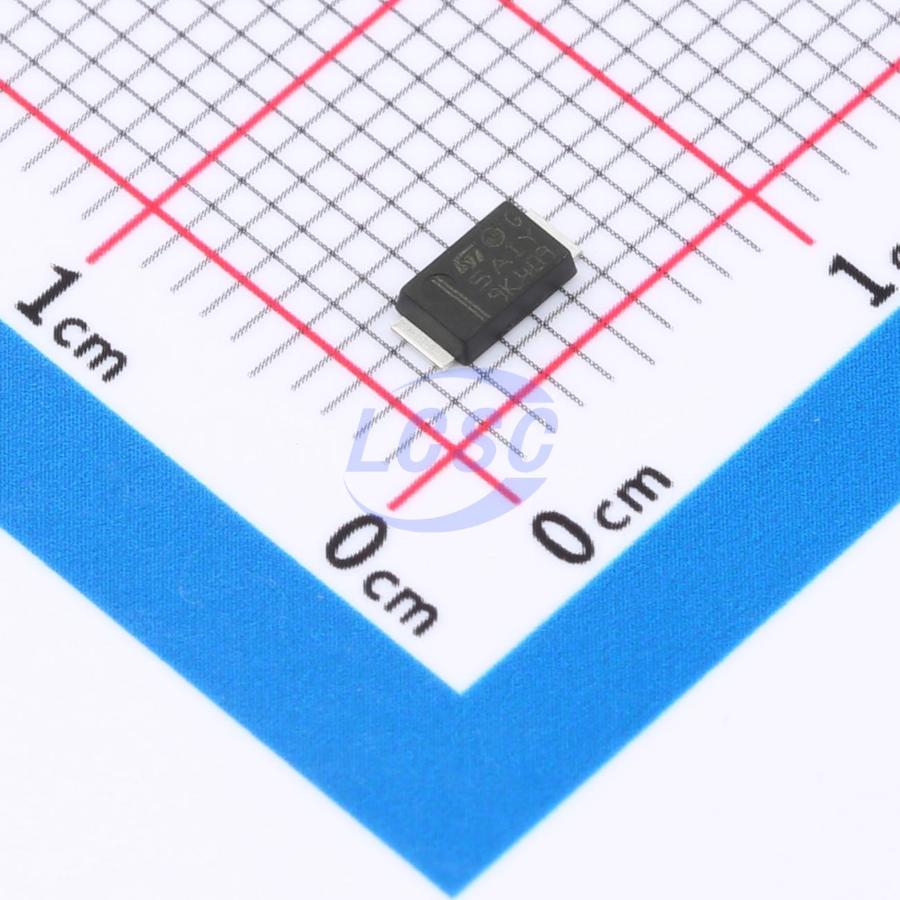

SM6F5.0AY
19.4VC Clamp 208A@8/20us Ipp TVS DIODE SOD-128
SOD-128ROHS3 CompliantActive
TVS DIODE 5VWM 19.4VC SOD-128
- Manufacturer
- ST
- Manufacturer part #
- SM6F5.0AY
- Store part #
- C3699020
- Package / case
- SOD-128
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C3699020
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.46 | ₹142.30 |
| 50+ | ₹27.84 | ₹1,392.00 |
| 150+ | ₹27.43 | ₹4,114.50 |
| 500+ | ₹27.02 | ₹13,510.00 |
5 × ₹28.46
₹142.30
excl. GST
₹167.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 6,000 per reel
SM6F5.0AY
₹142.30 for 5 + GST
Specifications
- Clamping Voltage
- 13.4V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 298A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 4kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.74V
- type
- TVS
- Reverse Leakage Current (Ir)
- 20uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 6,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The SM6FY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The Planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
Key features
- AEC-Q101 qualified
- Peak pulse power: 600 W (10/1000 µs) and 4 kW (8/20 µs)
- Stand-off voltage range from 5 V to 36 V
- Unidirectional type
- Low leakage current: 0.2 µA at 25 °C and 1 µA at 85 °C
- Operating Tj max: 175 °C
- High power capability at 175 °C (Tj max.) up to 240 W (10/1000 µs)
- Lead finishing: matte tin platting
- UL94, V0
- J-STD-020 MSL level 1
- J-STD-002, JESD 22-B102 E3 and MIL-STD-750, method 2026 solderable, matte tin plated leads
- JESD-201 class 2 whisker test
- IPC7531 footprint
- JEDEC registered package outline
- IEC 61000-4-4 level 4: 4 kV
- ISO10605, IEC 61000-4-2, C = 150 pF - R = 330 Ω exceeds level 4: 30 kV (air discharge) 30 kV (contact discharge)
- ISO 10605 - C = 330 pF, R = 330 Ω exceeds level 4: 30 kV (air discharge) 30 kV (contact discharge)
- ISO7637-2 (Not applicable to parts with stand-off voltage lower than battery voltage) Pulse1: Vs = -150 V Pulse 2a: Vs = +112 V Pulse 3a: Vs = -220 V Pulse 3b: Vs = +150 V
