VISHAYDatasheet (PDF)

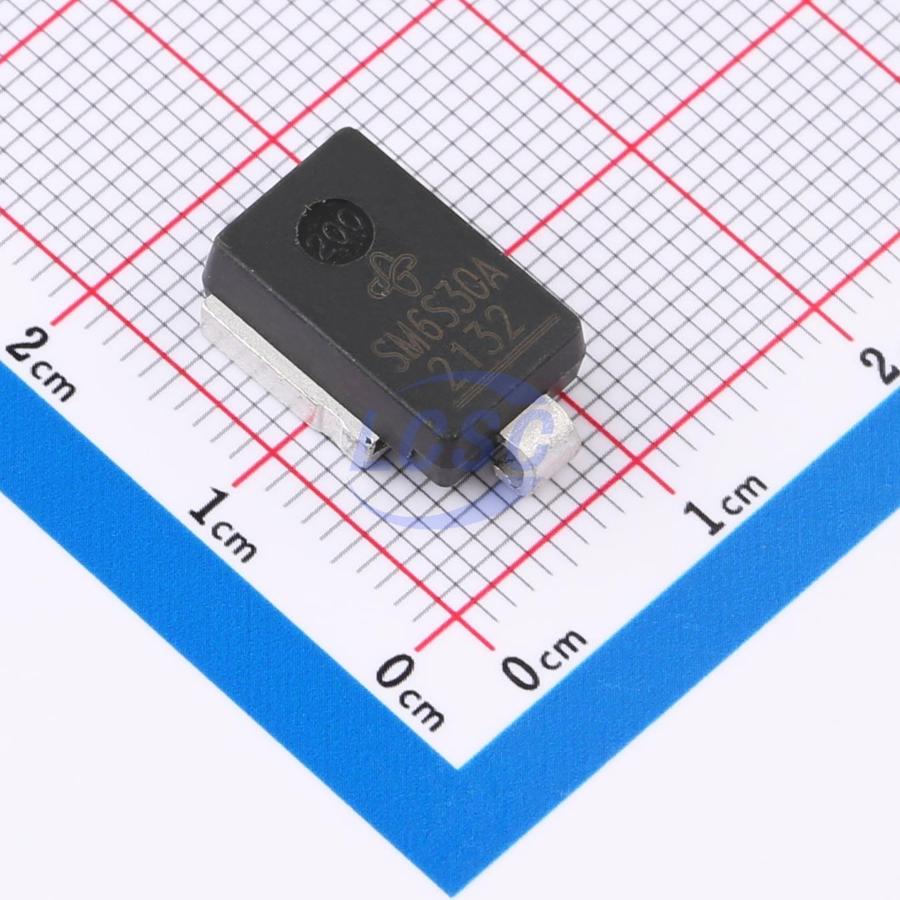

SM6S30AHE3_A/I
48.4VC Clamp 95A@10/1000us Ipp TVS DIODE DO-218AB
DO-218ABROHS3 CompliantActive
TVS DIODE 30VWM 48.4VC DO-218AB
- Manufacturer
- VISHAY
- Manufacturer part #
- SM6S30AHE3_A/I
- Store part #
- C1984435
- Package / case
- DO-218AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C1984435
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹643.96 | ₹643.96 |
| 10+ | ₹634.72 | ₹6,347.20 |
| 30+ | ₹628.48 | ₹18,854.40 |
| 100+ | ₹622.25 | ₹62,225.00 |
1 × ₹643.96
₹643.96
excl. GST
₹759.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SM6S30AHE3_A/I
₹643.96 for 1 + GST
Specifications
- Clamping Voltage
- 48.4V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 95A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 4.6kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 36.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 10uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.26 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application.
Key features
- Junction passivation optimized design passivated anisotropic rectifier technology
- T_J = 175 °C capability suitable for high reliability e3 and automotive requirement RoHS
- Available in uni-directional polarity only COMPLIANT
- Low leakage current
- Low forward voltage drop
- High surge capability
- Meets ISO7637-2 surge specification (varied by test condition)
- Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DM6W30AQ-13#C1974398DIODES · DO-218 | DIODES | DO-218 | On request | ₹295.89 · 0 in stock | View | |
| DM6W30A-13#C1983868DIODES · DO-218 | DIODES | DO-218 | On request | ₹269.55 · 0 in stock | View | |
| ALS6W30A#C19948448DIODES · DO-218 | DIODES | DO-218 | On request | ₹295.16 · 0 in stock | View | |
| SM6S30ATHE3/I#C3703334VISHAY · DO-218AC | VISHAY | DO-218AC | On request | ₹192.85 · 0 in stock | View | |
| SM6S30A-AU_R2_000A1#C5919613PANJIT · DO-218AB | PANJIT | DO-218AB | On request | ₹109.70 · 0 in stock | View | |
