VISHAYDatasheet (PDF)

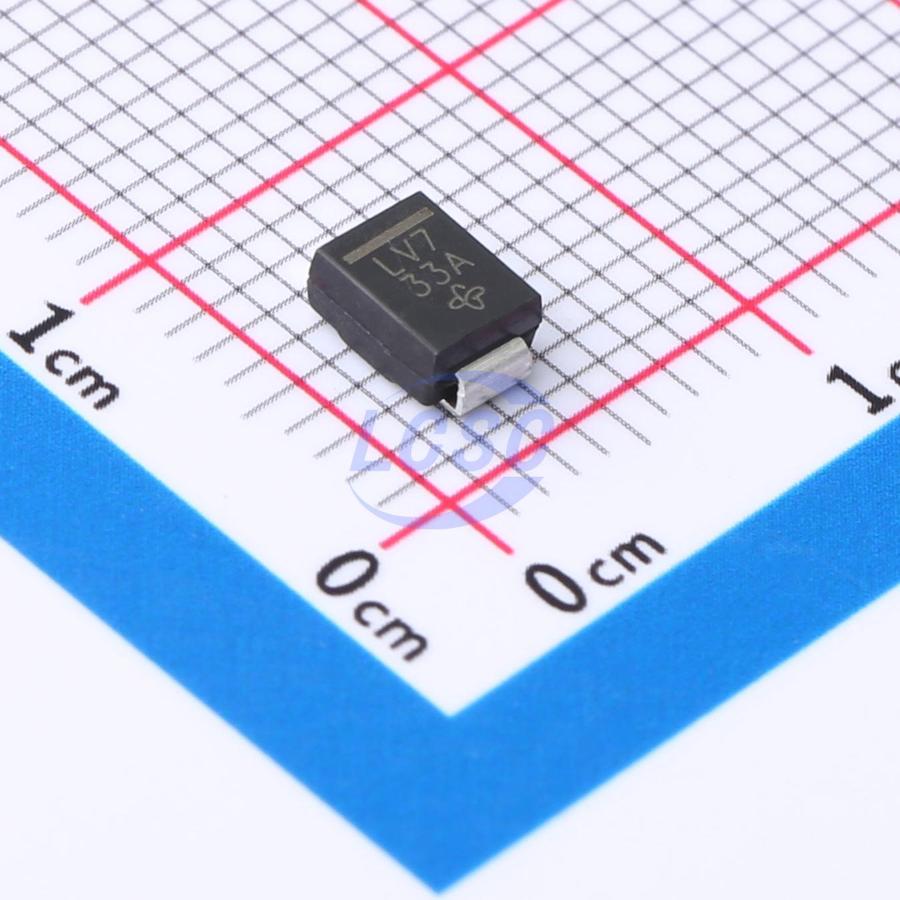

SM6T24A-E3/52
33.2VC Clamp 18A Ipp TVS DIODE DO-214AA(SMBJ)
DO-214AA(SMBJ)ROHS3 CompliantActive
TVS DIODE 20.5VWM 33.2VC DO-214AA(SMBJ)
- Manufacturer
- VISHAY
- Manufacturer part #
- SM6T24A-E3/52
- Store part #
- C3706522
- Package / case
- DO-214AA(SMBJ)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3706522
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.72 | ₹93.60 |
| 50+ | ₹14.98 | ₹749.00 |
| 150+ | ₹13.10 | ₹1,965.00 |
| 750+ | ₹11.70 | ₹8,775.00 |
| 2,250+ | ₹10.57 | ₹23,782.50 |
| 5,250+ | ₹10.02 | ₹52,605.00 |
5 × ₹18.72
₹93.60
excl. GST
₹110.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SM6T24A-E3/52
₹93.60 for 5 + GST
Specifications
- Clamping Voltage
- 33.2V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 18A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 22.8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 20.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.213 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Available in unidirectional and bidirectional
- 600 W peak pulse power capability with a 10/1000 ps waveform
- Excellent clamping capability
- Low inductance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or base P/NHM3
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
