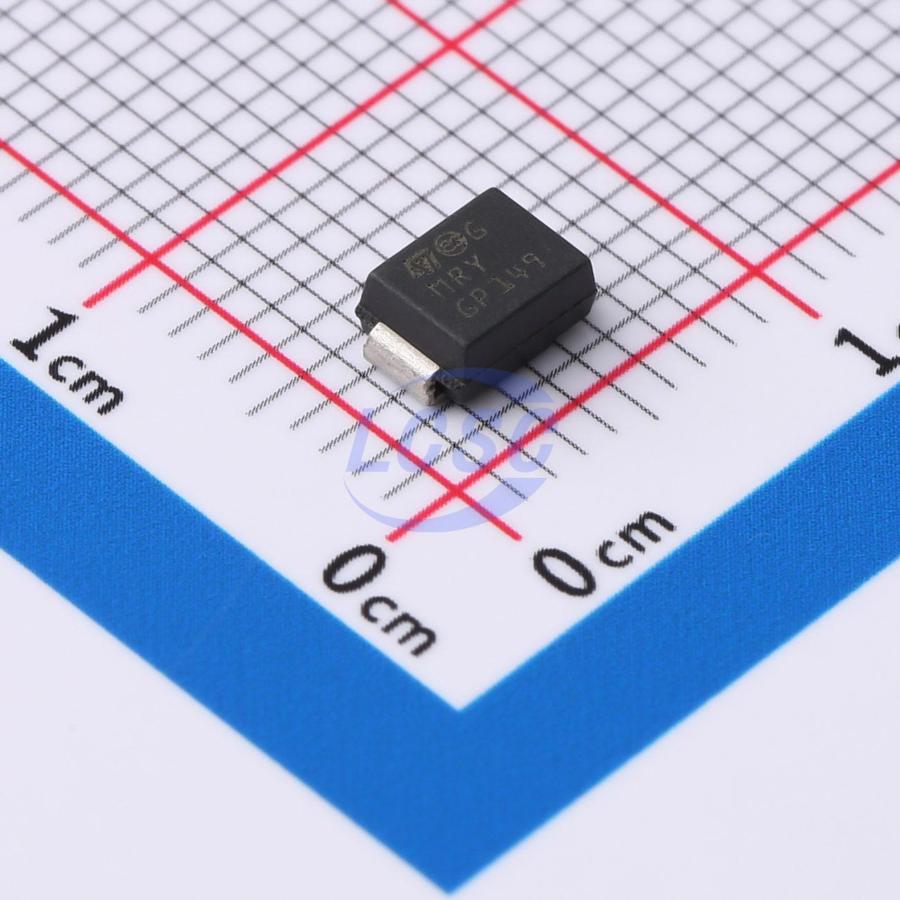

SM6T30CAY
53.5VC Clamp 53.5A@8/20us Ipp TVS DIODE SMB(DO-214AA)
TVS DIODE 30VWM 53.5VC SMB(DO-214AA)
- Manufacturer
- ST
- Manufacturer part #
- SM6T30CAY
- Store part #
- C1973165
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
250 in stock
#C1973165
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.12 | ₹205.60 |
| 50+ | ₹32.85 | ₹1,642.50 |
| 150+ | ₹29.30 | ₹4,395.00 |
| 500+ | ₹23.89 | ₹11,945.00 |
| 2,500+ | ₹21.92 | ₹54,800.00 |
| 5,000+ | ₹20.74 | ₹1,03,700.00 |
5 × ₹41.12
₹205.60
excl. GST
₹242.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM6T30CAY
₹205.60 for 5 + GST
Specifications
- Clamping Voltage
- 48.3V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 83A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 4kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 27V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
The SM6TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The Planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
Key features
- AEC-Q101 qualified
- Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs)
- Stand-off voltage range from 5 V to 188 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C
- Operating Tj max: 150 °C
- High power capability at Tj max.: up to 515 W (10/1000 μs)
- Lead finishing: matte tin plating
