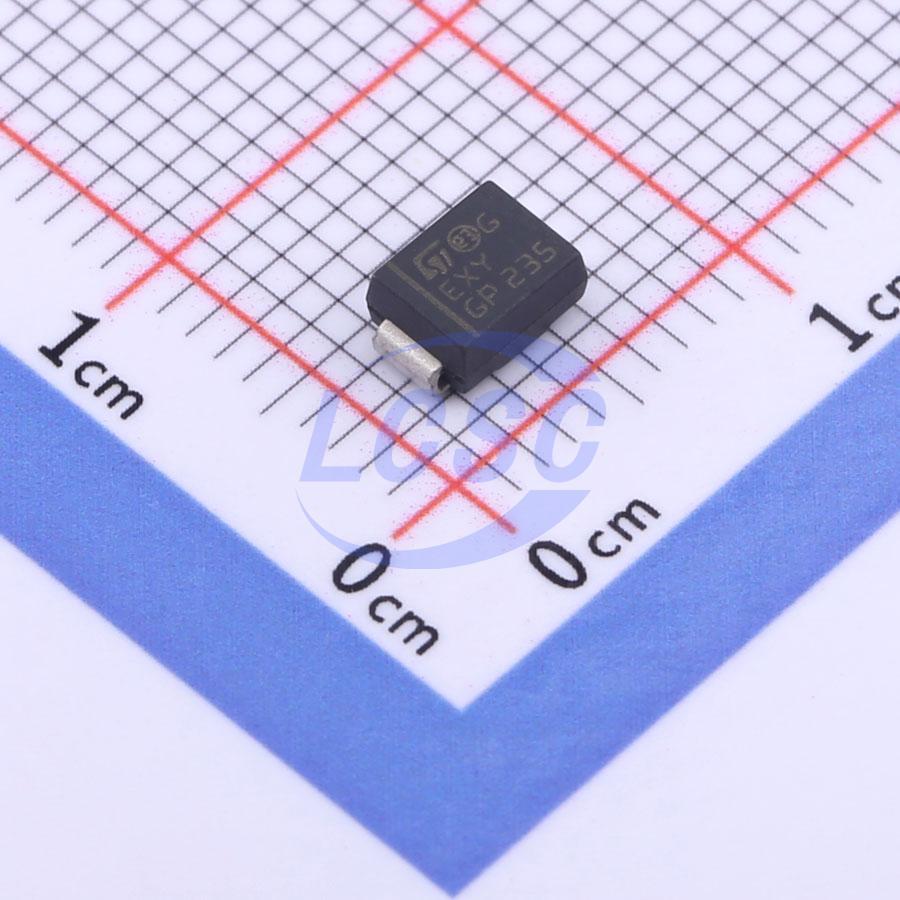

SM6T39AY
69.7VC Clamp 69.7A@8/20us Ipp TVS DIODE SMB(DO-214AA)
TVS DIODE 37.1VWM 69.7VC SMB(DO-214AA)
- Manufacturer
- ST
- Manufacturer part #
- SM6T39AY
- Store part #
- C1975690
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C1975690
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹141.31 | ₹141.31 |
| 10+ | ₹115.30 | ₹1,153.00 |
| 30+ | ₹102.20 | ₹3,066.00 |
| 100+ | ₹89.09 | ₹8,909.00 |
| 500+ | ₹81.31 | ₹40,655.00 |
| 1,000+ | ₹77.42 | ₹77,420.00 |
1 × ₹141.31
₹141.31
excl. GST
₹166.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM6T39AY
₹141.31 for 1 + GST
Specifications
- Clamping Voltage
- 69.7V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 57A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 4kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 41V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 39V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.224 g
Overview
The SM6TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The Planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
Key features
- AEC-Q101 qualified
- Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs)
- Stand-off voltage range from 5 V to 188 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C
- Operating Tj max: 150 °C
- High power capability at Tj max.: up to 515 W (10/1000 μs)
- Lead finishing: matte tin plating
