VISHAYDatasheet (PDF)

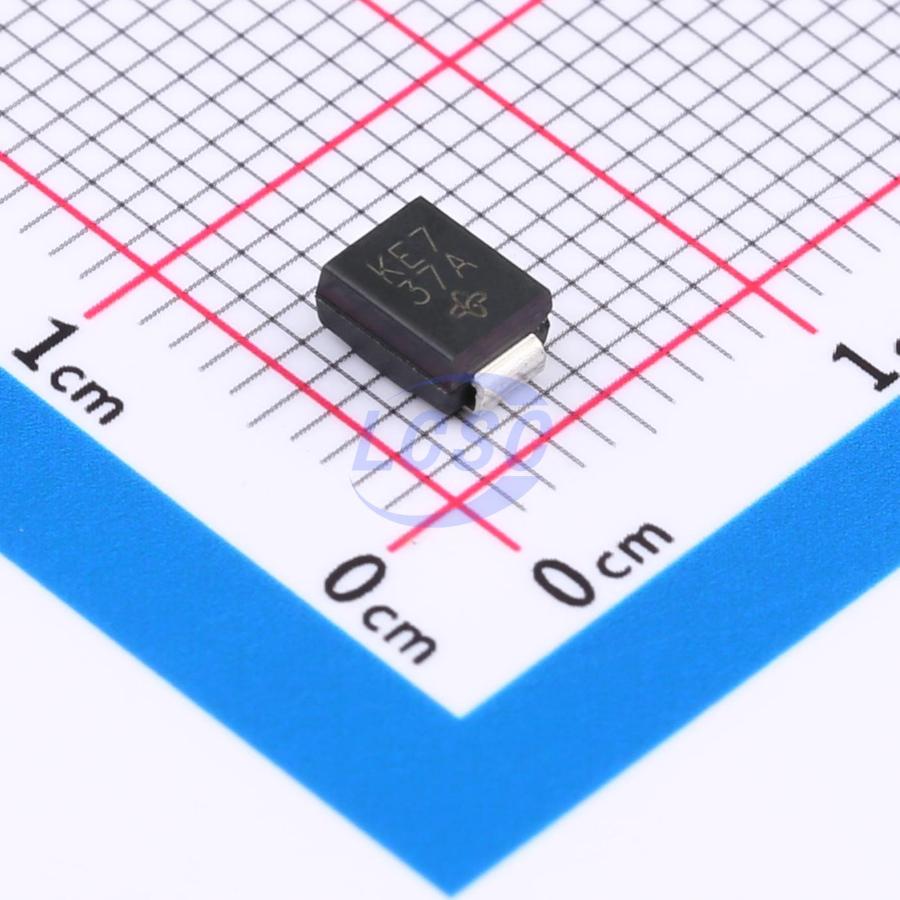

SM6T6V8CA-E3/5B
10.5VC Clamp 57A Ipp TVS DIODE DO-214AA(SMBJ)
DO-214AA(SMBJ)ROHS3 CompliantActive
TVS DIODE 5.8VWM 10.5VC DO-214AA(SMBJ)
- Manufacturer
- VISHAY
- Manufacturer part #
- SM6T6V8CA-E3/5B
- Store part #
- C1974829
- Package / case
- DO-214AA(SMBJ)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C1974829
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.04 | ₹155.20 |
| 50+ | ₹30.61 | ₹1,530.50 |
| 150+ | ₹30.34 | ₹4,551.00 |
| 500+ | ₹30.05 | ₹15,025.00 |
5 × ₹31.04
₹155.20
excl. GST
₹183.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,200 per reel
SM6T6V8CA-E3/5B
₹155.20 for 5 + GST
Specifications
- Clamping Voltage
- 10.5V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 57A
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.14V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1mA
- Reverse Stand-Off Voltage (Vrwm)
- 5.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,200 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.152 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement RoHS compliant
- Glass passivated chip junction
- Halogen free
- Available in unidirectional and bidirectional
- 600 W peak pulse power capability with a 10/1000 μs waveform
- Excellent clamping capability
- Low inductance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ6.8CA#C46293RUILON · DO-214AA(SMB) | RUILON | DO-214AA(SMB) | 55,840 | ₹10.69 · 55,840 in stock | View |
 | P6SMB6.8CA#C53058816luJing · SMB | luJing | SMB | 2,790 | ₹5.85 · 2,790 in stock | View |
 | P6SMB6.8CA#C17702887GOODWORK · SMB(DO-214AA) | GOODWORK | SMB(DO-214AA) | 42,160 | ₹5.62 · 42,160 in stock | View |
 | P6SMB6.8CA#C19077596R+O · DO-214AA(SMB) | R+O | DO-214AA(SMB) | 1,35,380 | ₹5.99 · 1,35,380 in stock | View |
 | SMBJ6.8CA#C53477592GOODWORK · SMB | GOODWORK | SMB | 120 | ₹5.31 · 120 in stock | View |
