TECH PUBLICDatasheet (PDF)

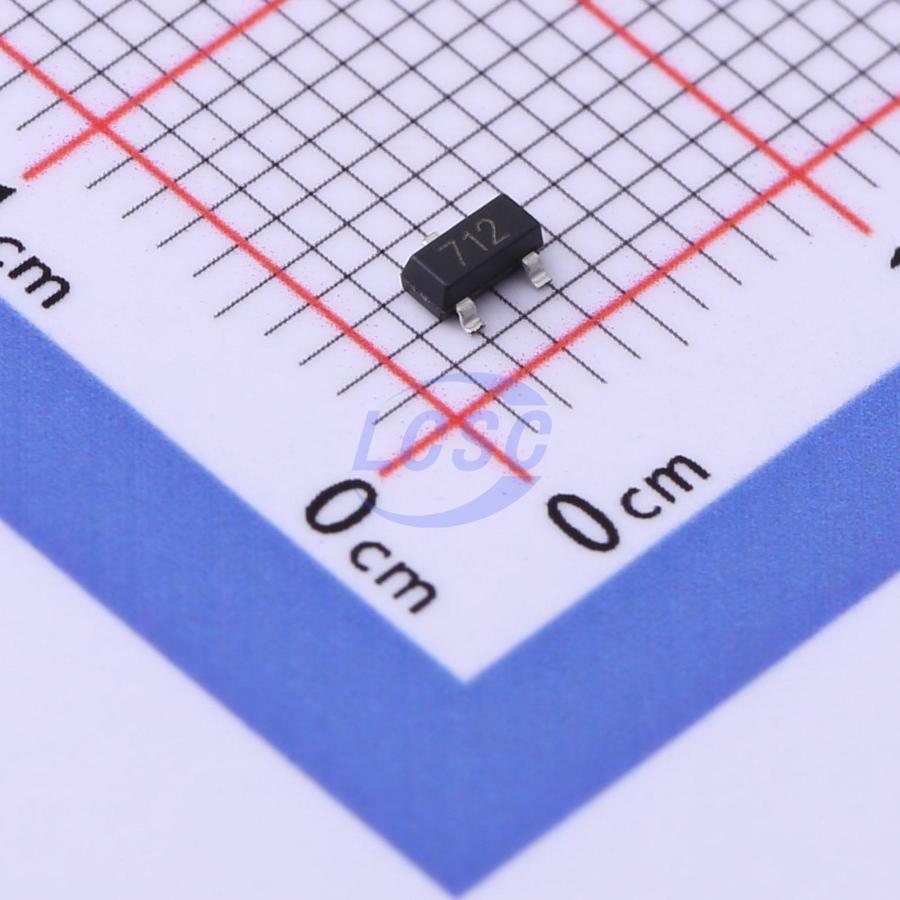

SM712.TCT
12VC Clamp 17A@8/20us Ipp SOT-23
SOT-23RoHSActive
7VWM 12VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SM712.TCT
- Store part #
- C3011183
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,530 in stock
#C3011183
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.50 | ₹95.00 |
| 100+ | ₹7.51 | ₹751.00 |
| 300+ | ₹6.52 | ₹1,956.00 |
| 3,000+ | ₹5.37 | ₹16,110.00 |
| 6,000+ | ₹4.78 | ₹28,680.00 |
| 9,000+ | ₹4.47 | ₹40,230.00 |
10 × ₹9.50
₹95.00
excl. GST
₹112.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SM712.TCT
₹95.00 for 10 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 17A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W@8/20us
- Voltage - Breakdown
- 7.5V
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- Wireless System
- Networks
- Portable Instrumentation
- RS485 Ports
Key features
- 400W peak pulse power (8/20us)
- Ultra low leakage: nA level
- Operating voltage: 7V or 12V
- Low clamping voltage
- Complies with following standards:
- IEC61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC61000 - 4 - 5 (Lightning) 17A (8/20us)
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPRLST23A712C#C47117634TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,950 | ₹6.40 · 2,950 in stock | View |
 | SM712#C521963TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,96,830 | ₹6.02 · 2,96,830 in stock | View |
