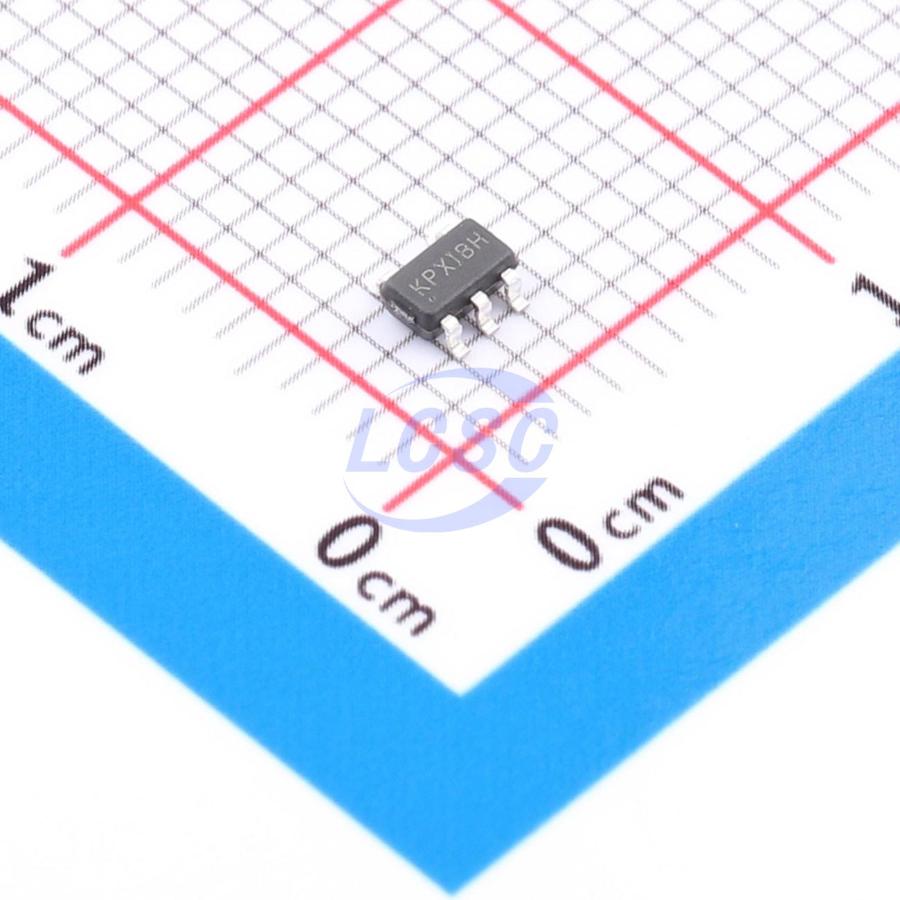

SM8002AAX

SM8002 is a high-efficiency 1.5MHz synchronous buck converter operating over a wide input voltage range of 2.5V to 5.5V, capable of delivering up to 2A of output current. It integrates high-side and low-side MOSFETs with ultra-low on-resistance to minimize conduction losses. The 1.5MHz quasi-constant switching frequency allows the use of small external inductors and capacitors. The device employs a constant off-time, peak current mode control scheme for fast transient response and high efficiency at light loads. It also provides cycle-by-cycle current limit protection, output undervoltage protection, and over-temperature protection. Only input and output capacitors, an inductor, a feedback resistor divider, and a feed-forward capacitor need to be selected according to the target application specifications. The SM8002 is available in a compact SOT23-5 or SOT23-6 package.

Applications

• Set-top box
• USB adapter
• Media player
• Smartphone

Key features

• Internal MOSFET low RDS(on): 156mΩ high-side, 102mΩ low-side
• Wide input voltage range: 2.5V ~ 5.5V
• Output current up to 2A
• 0.6V reference voltage with ±1.5% accuracy
• PFM light-load operation for high efficiency
• Internal soft-start limits inrush current
• 1.5MHz switching frequency minimizes external components
• Constant off-time and peak current mode control for fast transient response
• 100% duty cycle dropout operation
• Power-good indication available on SM8002ABX
• Output auto-discharge function
• Cycle-by-cycle peak current limit protection
• Hiccup mode output undervoltage protection
• Auto-recovery overtemperature protection
• RoHS compliant and halogen-free
• Input undervoltage lockout
• Compact package: SOT23-5/SOT23-6
