VISHAYDatasheet (PDF)

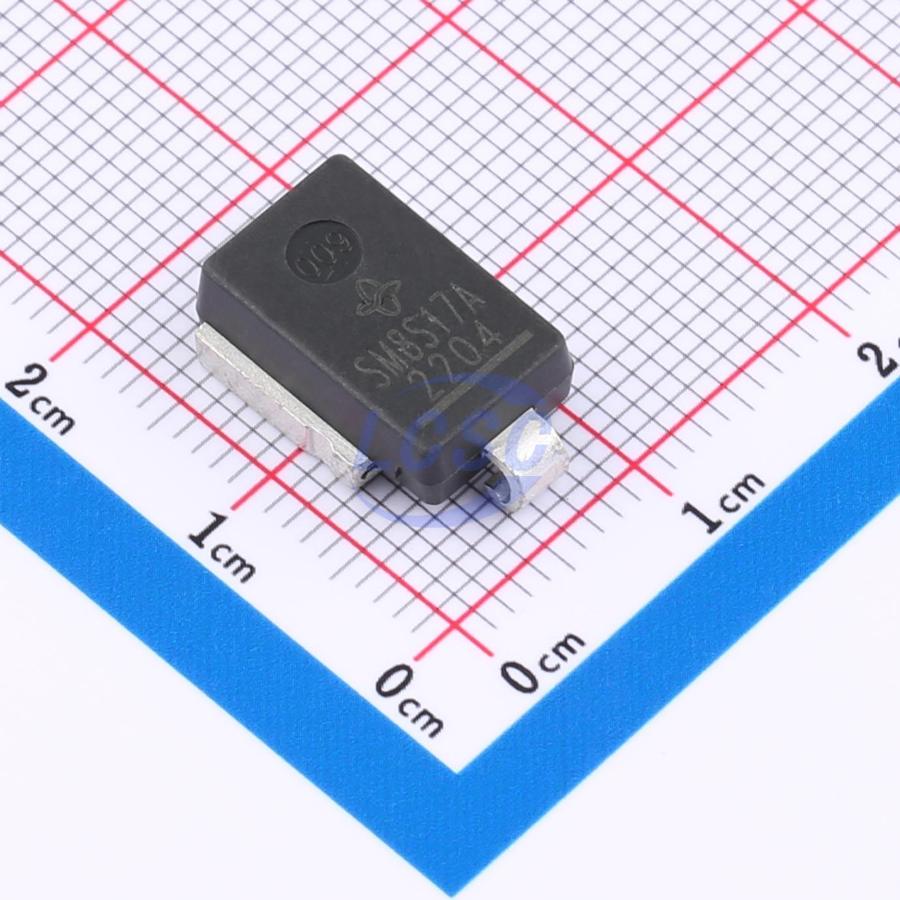

SM8S17AHE3_A/I
27.6VC Clamp 239A@10/1000us Ipp TVS DIODE DO-218AB
DO-218ABROHS3 CompliantActive
TVS DIODE 17VWM 27.6VC DO-218AB
- Manufacturer
- VISHAY
- Manufacturer part #
- SM8S17AHE3_A/I
- Store part #
- C1975898
- Package / case
- DO-218AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C1975898
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹810.75 | ₹810.75 |
| 10+ | ₹799.14 | ₹7,991.40 |
| 30+ | ₹791.41 | ₹23,742.30 |
| 100+ | ₹783.45 | ₹78,345.00 |
1 × ₹810.75
₹810.75
excl. GST
₹956.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SM8S17AHE3_A/I
₹810.75 for 1 + GST
Specifications
- Clamping Voltage
- 27.6V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 239A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 6.6kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 19.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10uA
- Reverse Stand-Off Voltage (Vrwm)
- 17V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.29 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application.
Key features
- Junction passivation optimized design passivated anisotropic rectifier technology
- T_J = 175 °C capability suitable for high reliability e3 and automotive requirement RoHS
- Available in uni-directional polarity only COMPLIANT
- Low leakage current
- Low forward voltage drop
- High surge capability
- Meets ISO7637-2 surge specification (varied by test condition)
- Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM8S17A#C2887183DOWO · DO-218AB | DOWO | DO-218AB | 165 | ₹182.10 · 165 in stock | View |
 | SM8S18AHE3_A/I#C511491VISHAY · DO-218AB | VISHAY | DO-218AB | 154 | ₹294.09 · 154 in stock | View |
 | SM8S18A#C284114DOWO · DO-218AB | DOWO | DO-218AB | 352 | ₹135.16 · 352 in stock | View |
 | SM8S18A#C47002295RUILON · DO-218AB | RUILON | DO-218AB | 643 | ₹200.86 · 643 in stock | View |
 | SM8S16A#C314441DOWO · DO-218AB | DOWO | DO-218AB | 527 | ₹187.07 · 527 in stock | View |
