VISHAYDatasheet (PDF)

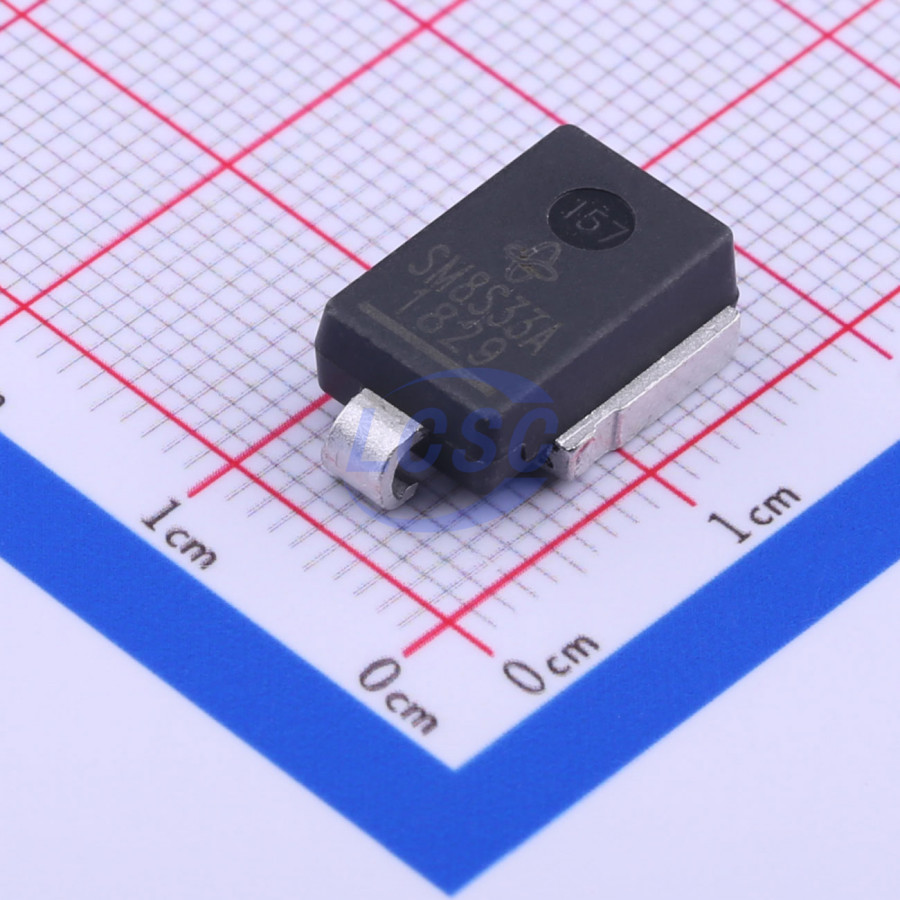

SM8S33AHE3_A/I
53.3VC Clamp 124A Ipp TVS DIODE DO-218AB
DO-218ABROHS3 CompliantActive
TVS DIODE 33VWM 53.3VC DO-218AB
- Manufacturer
- VISHAY
- Manufacturer part #
- SM8S33AHE3_A/I
- Store part #
- C335622
- Package / case
- DO-218AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,561 in stock
#C335622
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹228.91 | ₹228.91 |
| 10+ | ₹190.76 | ₹1,907.60 |
| 30+ | ₹169.83 | ₹5,094.90 |
| 100+ | ₹146.07 | ₹14,607.00 |
| 750+ | ₹135.61 | ₹1,01,707.50 |
| 1,500+ | ₹130.81 | ₹1,96,215.00 |
1 × ₹228.91
₹228.91
excl. GST
₹270.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SM8S33AHE3_A/I
₹228.91 for 1 + GST
Specifications
- Clamping Voltage
- 53.3V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 124A
- Peak Pulse Power Dissipation (Ppp)
- 6.6kW
- Number of Channels
- 1
- Voltage - Breakdown
- 36.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10uA
- Reverse Stand-Off Voltage (Vrwm)
- 33V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.16 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application.
Key features
- Junction passivation optimized design passivated anisotropic rectifier technology
- Tj = 175℃ capability suitable for high reliability and automotive requirement
- Available in uni-directional polarity only
- Low leakage current
- Low forward voltage drop
- High surge capability
- Meets ISO7637-2 surge specification (varied by test condition)
- Meets MSL level 1, per J-STD-020, LF maximum peak of 245℃
- AEC-Q101 qualified
