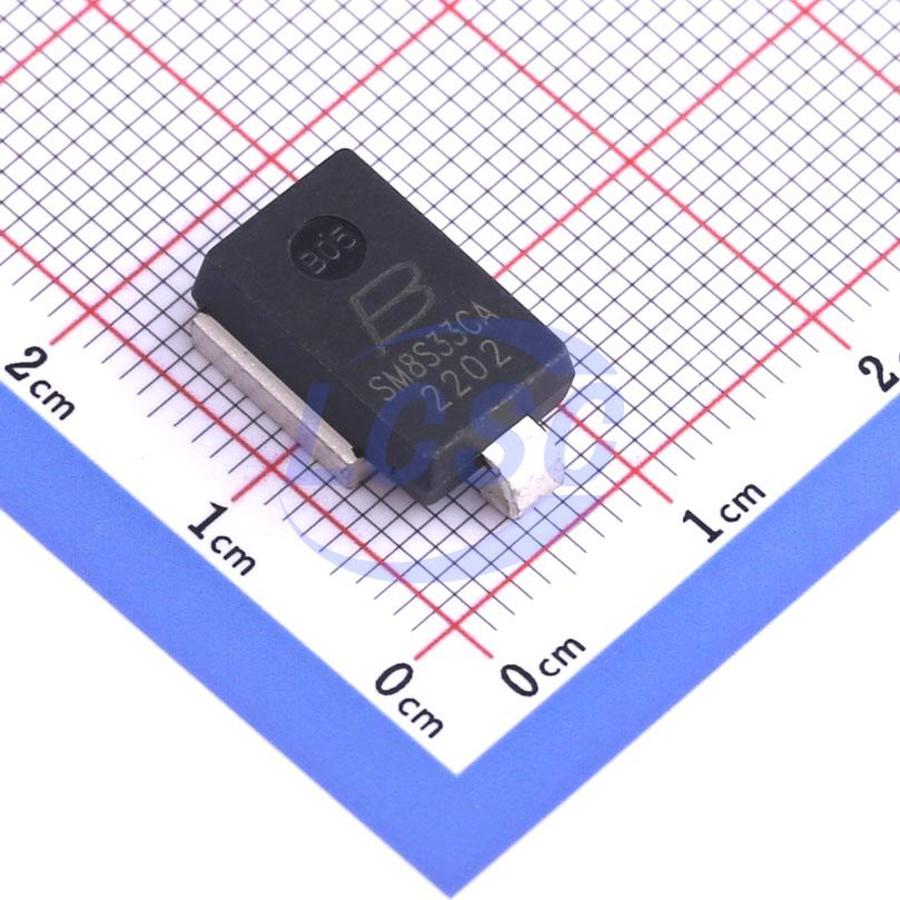

SM8S33CA-Q
53.3VC Clamp 124A Ipp TVS DIODE DO-218
TVS DIODE 33VWM 53.3VC DO-218
- Manufacturer
- BOURNS
- Manufacturer part #
- SM8S33CA-Q
- Store part #
- C1976723
- Package / case
- DO-218
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
67 in stock
#C1976723
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹343.79 | ₹343.79 |
| 10+ | ₹291.58 | ₹2,915.80 |
| 30+ | ₹259.15 | ₹7,774.50 |
| 100+ | ₹225.65 | ₹22,565.00 |
| 750+ | ₹210.63 | ₹1,57,972.50 |
| 1,500+ | ₹204.10 | ₹3,06,150.00 |
1 × ₹343.79
₹343.79
excl. GST
₹405.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SM8S33CA-Q
₹343.79 for 1 + GST
Specifications
- Clamping Voltage
- 53.3V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 124A
- Peak Pulse Power Dissipation (Ppp)
- 6.6kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 40.6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 10uA
- Reverse Stand-Off Voltage (Vrwm)
- 33V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.651 g
Overview
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-218 size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 16 V up to 43 V. Typical fast response times are less than 1.0 picosecond from 0 V to Breakdown Voltage.
Applications
- High peak power applications (up to rated limits)
- High temperature applications (up to rated limits)
- Clamping diode
- Load switching and lighting
Key features
- Maximum Peak Power Dissipation: 6600 watts
- RoHS compliant
- AEC-Q101 compliant and manufactured at an IATF 16949:2016 certified factory
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM8S33CA#C19196705AnBon · DO-218AB | AnBon | DO-218AB | 5 | ₹94.57 · 5 in stock | View |
 | SM8S33CA#C47002293RUILON · DO-218AB | RUILON | DO-218AB | 726 | ₹206.07 · 726 in stock | View |
 | SM8S33CAQ#C5373031YANGJIE · DO-218AB | YANGJIE | DO-218AB | 2,280 | ₹233.89 · 2,280 in stock | View |
 | SM8S33CAHM3/I#C20036947VISHAY · DO-218AB | VISHAY | DO-218AB | 2 | ₹587.52 · 2 in stock | View |
 | SM8S33CA#C3720255MDD(Microdiode Semiconductor) · DO-218AB | MDD(Microdiode Semiconductor) | DO-218AB | 8 | ₹175.63 · 8 in stock | View |
