VISHAYDatasheet (PDF)

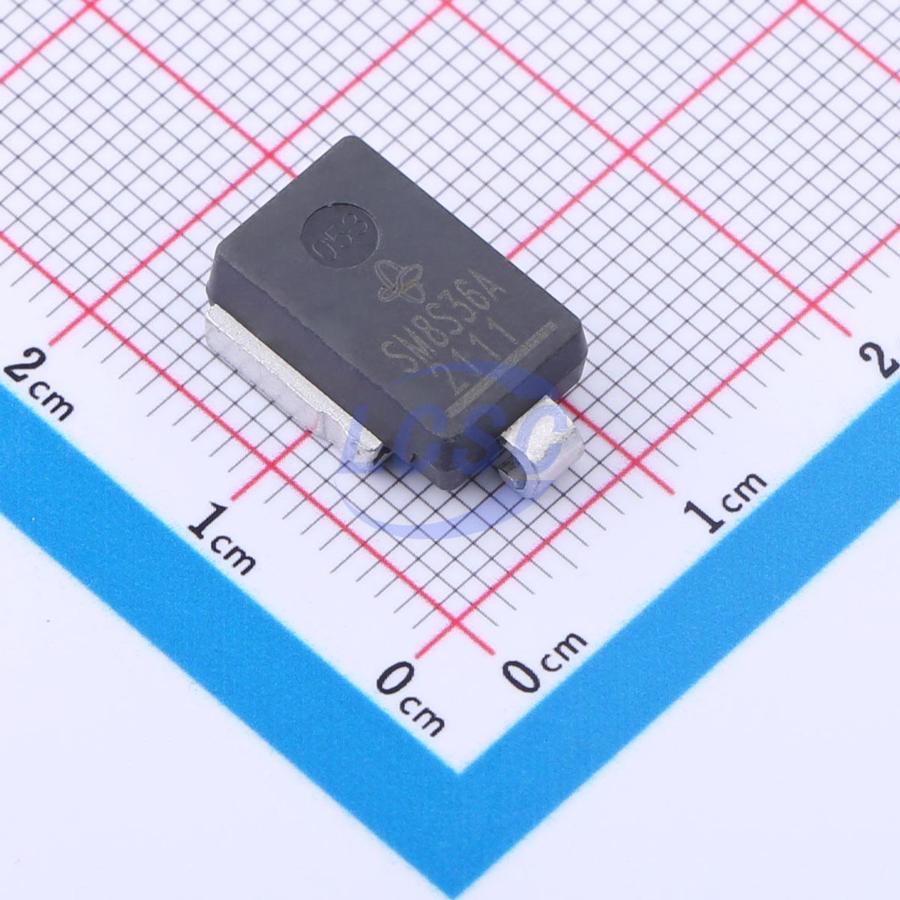

SM8S36AHE3_A/I
58.1VC Clamp 114A Ipp TVS DIODE DO-218AB
DO-218ABROHS3 CompliantActive
TVS DIODE 36VWM 58.1VC DO-218AB
- Manufacturer
- VISHAY
- Manufacturer part #
- SM8S36AHE3_A/I
- Store part #
- C554015
- Package / case
- DO-218AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C554015
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹211.94 | ₹211.94 |
| 10+ | ₹175.81 | ₹1,758.10 |
| 30+ | ₹156.02 | ₹4,680.60 |
| 100+ | ₹133.38 | ₹13,338.00 |
| 750+ | ₹109.89 | ₹82,417.50 |
| 1,500+ | ₹105.32 | ₹1,57,980.00 |
1 × ₹211.94
₹211.94
excl. GST
₹250.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SM8S36AHE3_A/I
₹211.94 for 1 + GST
Specifications
- Clamping Voltage
- 58.1V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 114A
- Peak Pulse Power Dissipation (Ppp)
- 6.6kW
- Number of Channels
- 1
- Voltage - Breakdown
- 40V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10uA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.215 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application.
Key features
- Junction passivation optimized design passivated anisotropic rectifier technology
- T_J = 175℃ capability suitable for high reliability and automotive requirement
- Available in uni-directional polarity only
- Low leakage current
- Low forward voltage drop
- High surge capability
- Meets ISO7637 - 2 surge specification (varied by test condition)
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 245℃
- AEC - Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM8S36A#C284116DOWO · DO-218AB | DOWO | DO-218AB | 7,061 | ₹158.77 · 7,061 in stock | View |
 | SM8S36A#C484314Yint · DO-218AB | Yint | DO-218AB | 1 | ₹192.22 · 1 in stock | View |
 | SM8S36A#C7529582RUILON · DO-218AB | RUILON | DO-218AB | 1,440 | ₹213.43 · 1,440 in stock | View |
 | SM8S36A-TP#C669025MCC · DO-218AB | MCC | DO-218AB | 2 | ₹342.31 · 2 in stock | View |
 | SM8S36A#C7466213amsem · DO-218AB | amsem | DO-218AB | 19 | ₹163.84 · 19 in stock | View |
