VISHAYDatasheet (PDF)

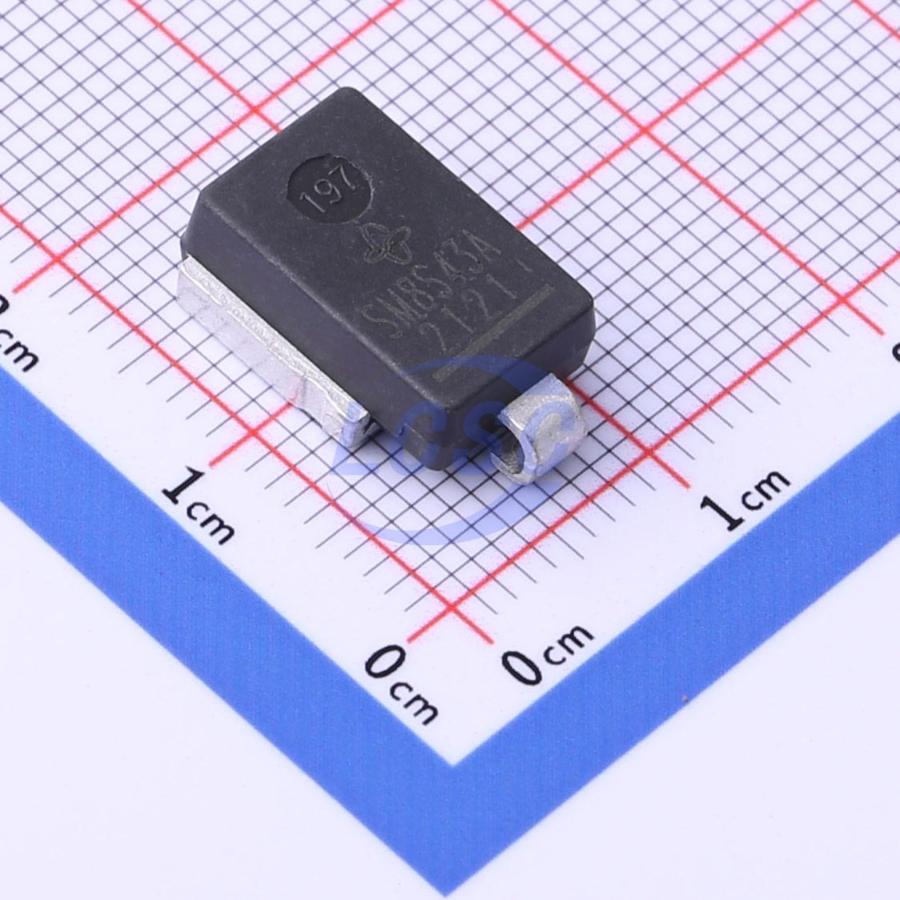

SM8S43AHE3_A/I
69.4VC Clamp 95.1A@10/1000us Ipp TVS DIODE DO-218AB
DO-218ABROHS3 CompliantActive
TVS DIODE 43VWM 69.4VC DO-218AB
- Manufacturer
- VISHAY
- Manufacturer part #
- SM8S43AHE3_A/I
- Store part #
- C1973676
- Package / case
- DO-218AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C1973676
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹275.28 | ₹275.28 |
| 10+ | ₹233.80 | ₹2,338.00 |
| 30+ | ₹207.78 | ₹6,233.40 |
| 100+ | ₹181.15 | ₹18,115.00 |
1 × ₹275.28
₹275.28
excl. GST
₹324.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SM8S43AHE3_A/I
₹275.28 for 1 + GST
Specifications
- Clamping Voltage
- 69.4V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 95.1A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 6.6kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 52.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 10uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 43V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.88 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application.
Key features
- Junction passivation optimized design passivated anisotropic rectifier technology
- T_J = 175 °C capability suitable for high reliability e3 and automotive requirement RoHS
- Available in uni-directional polarity only COMPLIANT
- Low leakage current
- Low forward voltage drop
- High surge capability
- Meets ISO7637-2 surge specification (varied by test condition)
- Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMPA43A#C163659PTTC(Polytronics Tech) · DO-218AB | PTTC(Polytronics Tech) | DO-218AB | 11 | ₹289.88 · 11 in stock | View |
 | SM8S43A#C314431DOWO · DO-218AB | DOWO | DO-218AB | 509 | ₹199.05 · 509 in stock | View |
 | SM8S43A#C5125704BORN · DO-218 | BORN | DO-218 | 667 | ₹222.53 · 667 in stock | View |
 | SM8S43A#C2940169LGE · DO-218AB | LGE | DO-218AB | 221 | ₹152.30 · 221 in stock | View |
 | SM8S40A#C314432DOWO · DO-218AB | DOWO | DO-218AB | 1,530 | ₹155.16 · 1,530 in stock | View |
