VISHAYDatasheet (PDF)

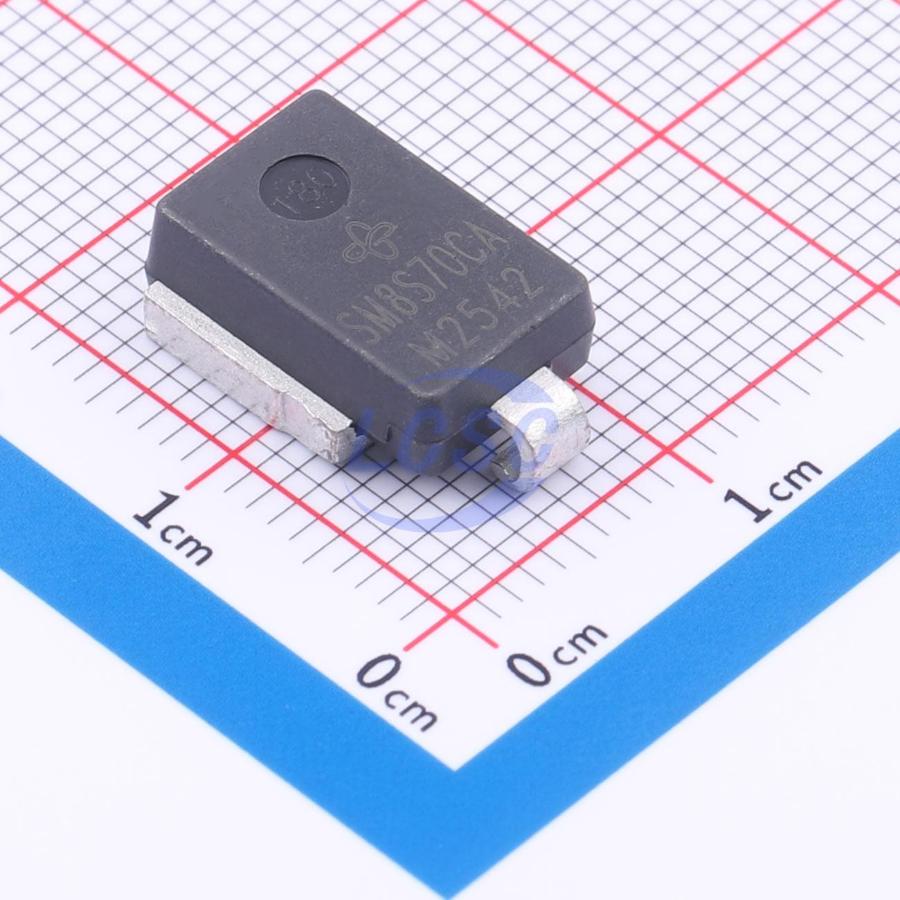

SM8S70CAHM3/I
113V 58.4A@10/1000us 6.6kW@10/1000us 86V Bidirectional 70V DO-218AB TVS Diodes RoHS
DO-218ABROHS3 CompliantActive
TVS DIODE 70VWM 113VC DO-218AB
- Manufacturer
- VISHAY
- Manufacturer part #
- SM8S70CAHM3/I
- Store part #
- C20036958
- Package / case
- DO-218AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C20036958
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹582.70 | ₹582.70 |
| 10+ | ₹574.10 | ₹5,741.00 |
| 30+ | ₹568.31 | ₹17,049.30 |
| 100+ | ₹562.50 | ₹56,250.00 |
1 × ₹582.70
₹582.70
excl. GST
₹687.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SM8S70CAHM3/I
₹582.70 for 1 + GST
Specifications
- Clamping Voltage
- 113V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 58.4A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 6.6kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 86V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 10uA
- Reverse Stand-Off Voltage (Vrwm)
- 70V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.306 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lightning, especially for automotive load dump protection application.
Key features
- Tj = 175 °C capability suitable for high reliability and automotive requirement COMPLIANT HALOGEN
- Bidirectional FREE
- Low leakage current
- High surge capability
- Meet ISO 7637-2 and ISO 16750-2 surge specification (varied by test condition)
- Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
- AEC-Q101 qualified
- RoHS compliant junction passivation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM8S75CAHM3/I#C20036959VISHAY · DO-218AB | VISHAY | DO-218AB | 2 | ₹560.94 · 2 in stock | View |
| SM8S64CAHM3/I#C20036957VISHAY · DO-218AB | VISHAY | DO-218AB | On request | ₹681.11 · 0 in stock | View | |
