STDatasheet (PDF)
SMA4F24AY

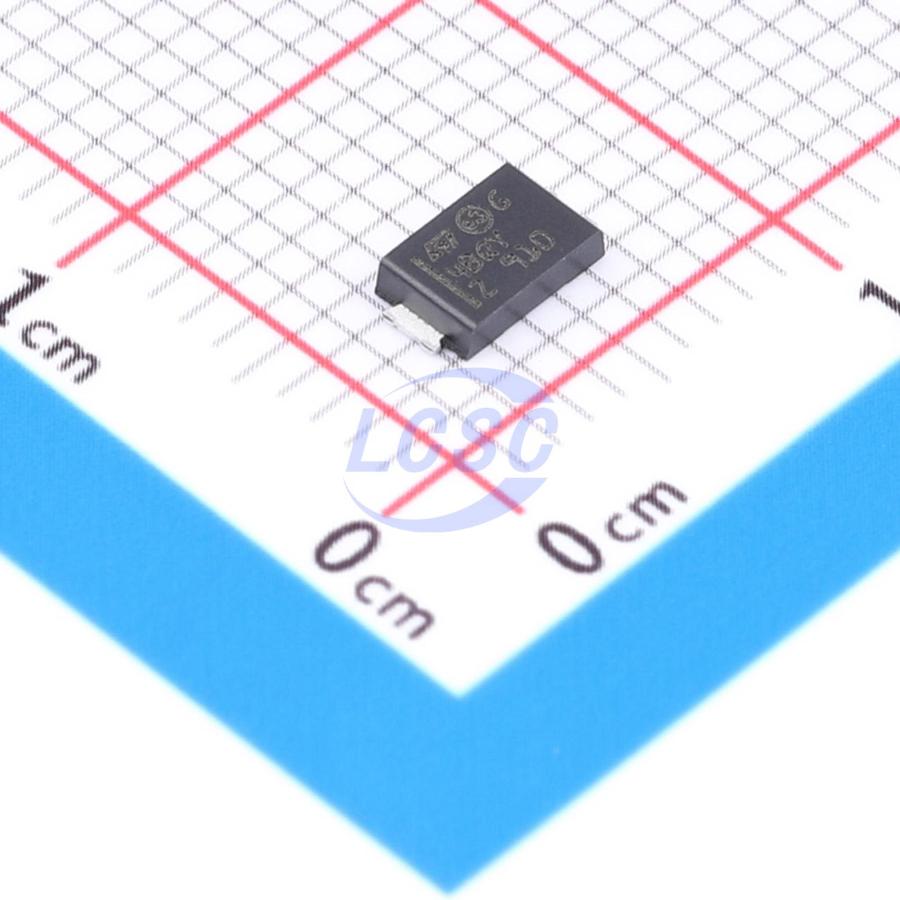

38.9VC Clamp 10.3A Ipp TVS DIODE SMA-flat
SMA-flatRoHSActive
- Manufacturer
- ST
- Manufacturer part #
- SMA4F24AY
- Store part #
- C1975051
- Package / case
- SMA-flat
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
77 in stock
#C1975051
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.41 | ₹109.41 |
| 10+ | ₹107.48 | ₹1,074.80 |
| 30+ | ₹106.40 | ₹3,192.00 |
| 100+ | ₹105.11 | ₹10,511.00 |
1 × ₹109.41
₹109.41
excl. GST
₹129.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SMA4F24AY
₹109.41 for 1 + GST
Specifications
- Clamping Voltage
- 38.9V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 10.3A
- Peak Pulse Power Dissipation (Ppp)
- 2.5kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 26.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.096 g
Overview
The SMA4FY Transil series are designed to protect sensitive automotive circuits against surges defined in ISO 7637 series and against electrostatic discharges according to ISO 10605. The Planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
Key features
- AEC-Q101 qualified
- Peak pulse power: 400 W (10/1000 μs) and 2.5 kW (8/20 μs)
- Flat and thin package: 1 mm
- Stand-off voltage range from 5 V to 188 V
- Unidirectional type
- Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C
- Operating Tj max: 175 °C
- High power capability at Tj max.: up to 200 W (10/1000 µs)
- Lead finishing: matte tin plating
- UL94, V0
- J-STD-020 MSL level 1
- J-STD-002, JESD 22-B102 E3 and MIL-STD-750, method 2026
- JESD-201 class 2 whisker test
- IPC7531 footprint and JEDEC registered package outline
- IEC 61000-4-4 level 4: 4 kV
- ISO10605, IEC 61000-4-2, C = 150 pF - R = 330 Ω exceeds level 4: 30 kV (contact discharge) 30 kV (air discharge)
- ISO10605, C = 330 pF, R = 330 Ω exceeds level 4: 30 kV (contact discharge) 30 kV (air discharge)
- ISO7637-2 (Not applicable to parts with VRM lower than battery voltage) Pulse 1: Vs = -150 V Pulse 2a: VS = +112 V Pulse 3a: VS = -220 V Pulse 3b: VS = +150 V
