VISHAYDatasheet (PDF)

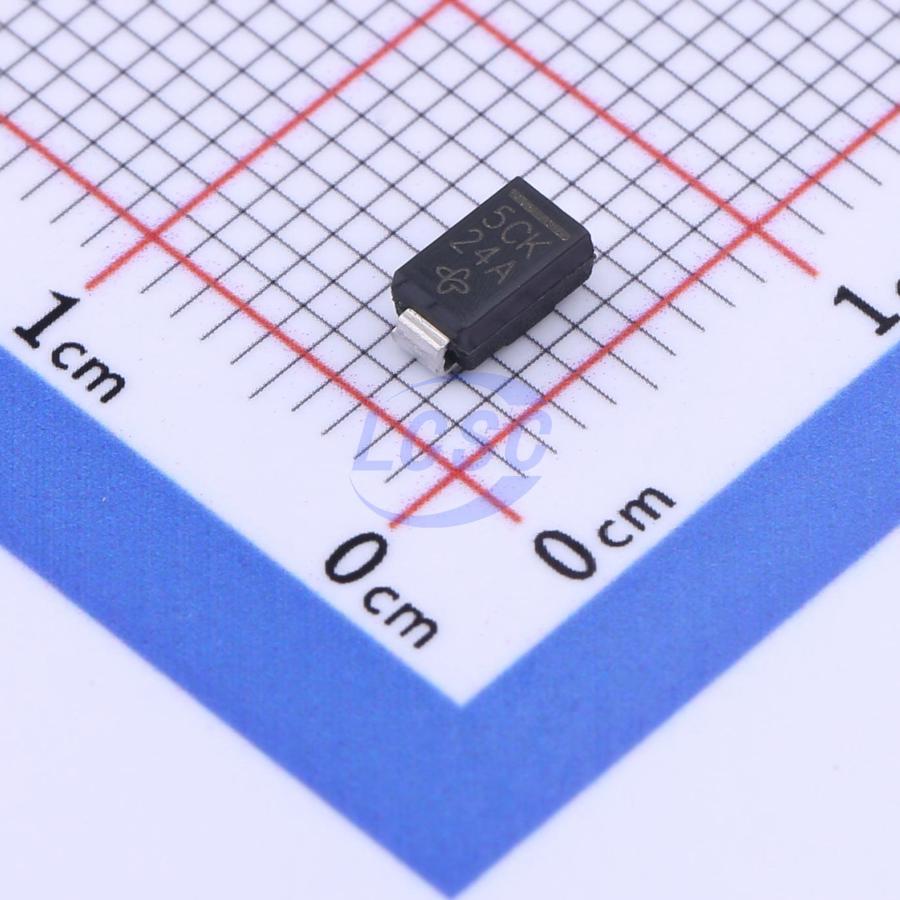

SMA5J30A-E3/61
48.4VC Clamp 10.3A@10/1000us Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
TVS DIODE 30VWM 48.4VC SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMA5J30A-E3/61
- Store part #
- C1974166
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,450 in stock
#C1974166
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.36 | ₹86.80 |
| 50+ | ₹16.97 | ₹848.50 |
| 150+ | ₹16.74 | ₹2,511.00 |
| 500+ | ₹16.48 | ₹8,240.00 |
5 × ₹17.36
₹86.80
excl. GST
₹102.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SMA5J30A-E3/61
₹86.80 for 5 + GST
Specifications
- Clamping Voltage
- 48.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 10.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 500W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 36.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Available in uni-directional and bi-directional
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ30AE3/TR13#C2445129MICROCHIP · DO-214AC(SMA) | MICROCHIP | DO-214AC(SMA) | 10 | ₹65.57 · 10 in stock | View |
 | SMAJ30A#C152117BORN · SMA(DO-214AC) | BORN | SMA(DO-214AC) | 14,020 | ₹7.62 · 14,020 in stock | View |
 | SMAJ30A#C19077547R+O · DO-214AC(SMA) | R+O | DO-214AC(SMA) | 2,800 | ₹5.13 · 2,800 in stock | View |
 | SMAJ30A#C20883293OTW · SMA(DO-214AC) | OTW | SMA(DO-214AC) | 3,280 | ₹3.51 · 3,280 in stock | View |
 | SMAJ30A-JSM#C41382495JSMSEMI · SMA | JSMSEMI | SMA | 7,660 | ₹4.25 · 7,660 in stock | View |
