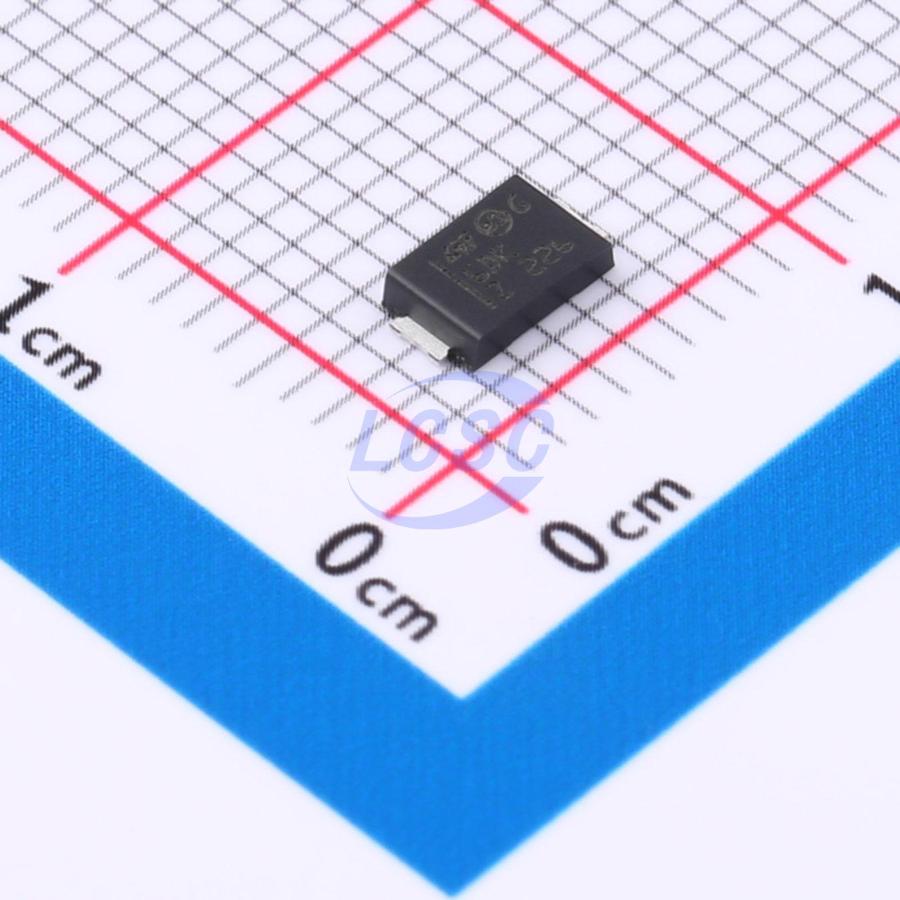

SMA6F70A
146VC Clamp 5.5A Ipp TVS DIODE SMA-flat
SMA-flatROHS3 CompliantActive
TVS DIODE 70VWM 146VC SMA-flat
- Manufacturer
- ST
- Manufacturer part #
- SMA6F70A
- Store part #
- C1977159
- Package / case
- SMA-flat
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C1977159
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.65 | ₹53.25 |
| 50+ | ₹10.43 | ₹521.50 |
| 150+ | ₹10.28 | ₹1,542.00 |
| 500+ | ₹10.12 | ₹5,060.00 |
5 × ₹10.65
₹53.25
excl. GST
₹62.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SMA6F70A
₹53.25 for 5 + GST
Specifications
- Clamping Voltage
- 146V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 5.5A
- Peak Pulse Power Dissipation (Ppp)
- 48.5W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 77.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 70V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
The SMA6F Transil series are designed to protect sensitive circuits against transient surges. The planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
Key features
- Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs)
- Flat and thin package: 1 mm
- Stand-off voltage range from 5 V to 188 V
- Unidirectional type
- Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C
- Operating Tj max: 175 °C
- High power capability at Tj max.: up to 400 W (10/1000 µs)
- Lead finishing: matte tin plating
- UL94, V0
- J-STD-020 MSL level 1
- J-STD-002, JESD 22-B102 E3 and MIL-STD-750, method 2026
- JESD-201 class 2 whisker test
- IPC7531 footprint and JEDEC registered package outline
- IEC 61000-4-2, C = 150 pF - R = 330 Ω exceeds level 4: 30 kV (contact discharge) 30 kV (air discharge)
- IEC 61000-4-4 level 4: 4 kV
