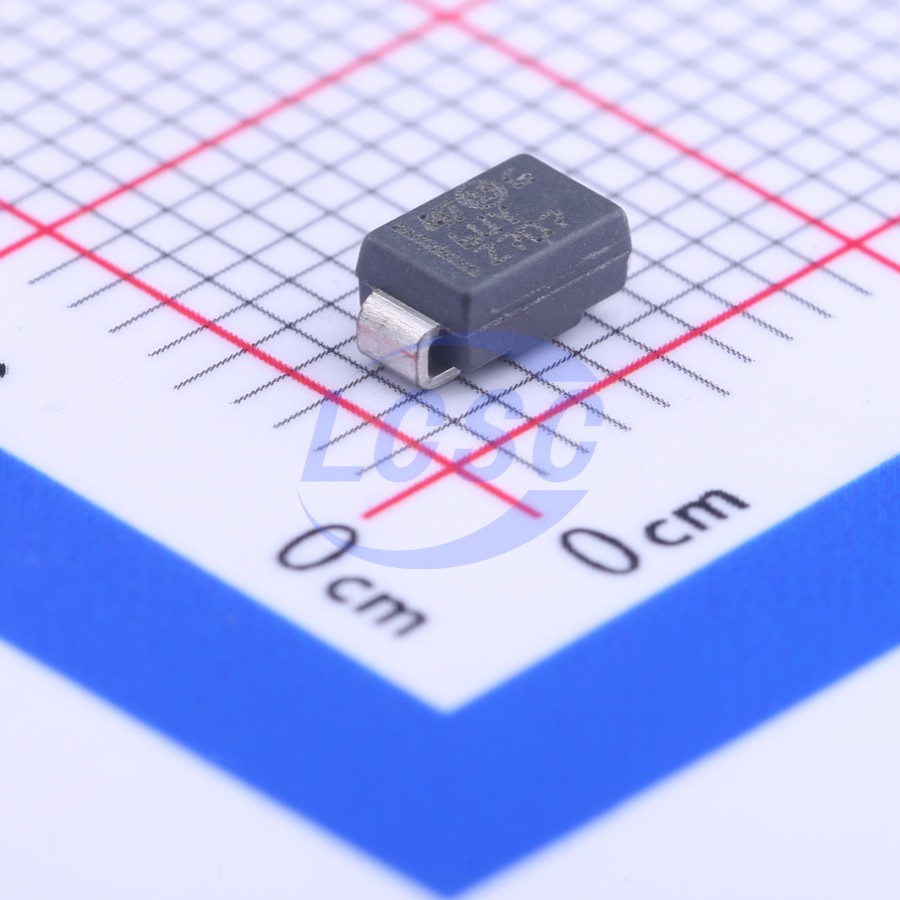

SMA6J154A-TR

The SMA6J Transil series has been designed to protect sensitive equipment against electro-static discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are generally for surges below 600 W 10/1000 µs. This planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time. Their low clamping voltages provides a better safety margin to protect sensitive circuits with extended life time expectancy. Packaged in SMA, this minimizes PCB space consumption (SMA footprint in accordance with IPC 7531 standard).

Key features

• Peak pulse power: – 600 W (10/1000 µs) – 4 kW (8/20 µs)
• Stand off voltage range: from 5 V to 188 V
• Unidirectional and bidirectional types
• Low clamping voltage versus standard series
• Low leakage current: – 0.2 µA at 25 °C, 1 µA at 85 °C
• Operating Tj max: 175 °C
• JEDEC registered package outline
• Complies with IEC 61000 - 4 - 2 level 4: 15 kV (air discharge), 8 kV (contact discharge)
• Complies with MIL STD 883G - Method 3015 - 7: class3B, 25 kV (human body model)
