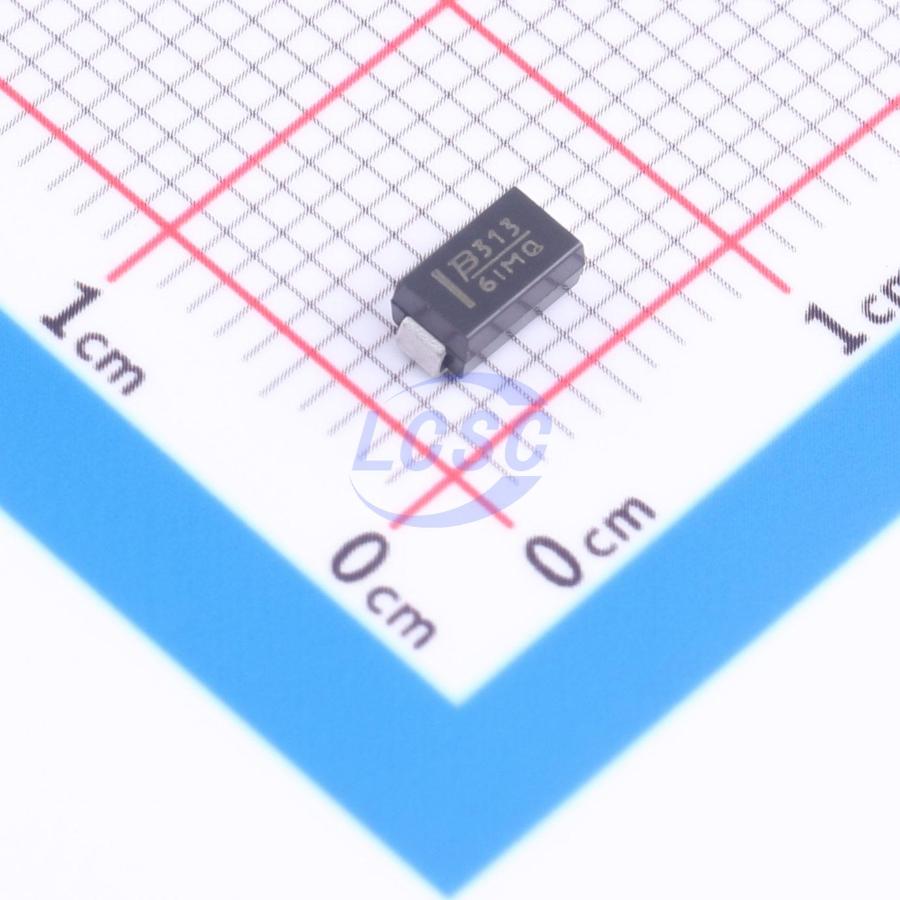

SMA6J15A-Q
24.4VC Clamp 24.6A Ipp TVS DIODE SMA(DO-214AC)
- Manufacturer
- BOURNS
- Manufacturer part #
- SMA6J15A-Q
- Store part #
- C1847737
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C1847737
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.04 | ₹58.04 |
| 10+ | ₹57.18 | ₹571.80 |
| 30+ | ₹56.53 | ₹1,695.90 |
| 100+ | ₹55.90 | ₹5,590.00 |
1 × ₹58.04
₹58.04
excl. GST
₹68.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMA6J15A-Q
₹58.04 for 1 + GST
Specifications
- Clamping Voltage
- 24.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 24.6A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 18.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.116 g
Overview
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AC (SMA) size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 130 V. Typical fast response times are less than 1.0 picosecond from 0 V to Breakdown Voltage.
Applications
- Protection of power buses
- Protection of I/O interfaces
- Overvoltage transient protection
- Telecom, computer, industrial and consumer electronics applications
Key features
- Surface Mount SMA package
- Standoff Voltage: 5 to 130 volts
- Power Dissipation: 600 watts
- RoHS compliant
- AEC-Q101 compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SMA6J15A#C54525273MDD(Microdiode Semiconductor) · SMA | MDD(Microdiode Semiconductor) | SMA | 4,650 | ₹5.90 · 4,650 in stock | View | |
 | SMA6J15A#C713691LGE · SMA(DO-214AC) | LGE | SMA(DO-214AC) | 85 | ₹11.26 · 85 in stock | View |
 | SMA6J14A#C42413022Semiwell · DO-214AC(SMA) | Semiwell | DO-214AC(SMA) | 10 | ₹6.32 · 10 in stock | View |
| SMA6J16A#C3718266Littelfuse · DO-214AC(SMA) | Littelfuse | DO-214AC(SMA) | 263 | ₹61.69 · 263 in stock | View | |
| SMA6J14A#C1979424Littelfuse · SMA(DO-214AC) | Littelfuse | SMA(DO-214AC) | 4,940 | ₹26.10 · 4,940 in stock | View | |
