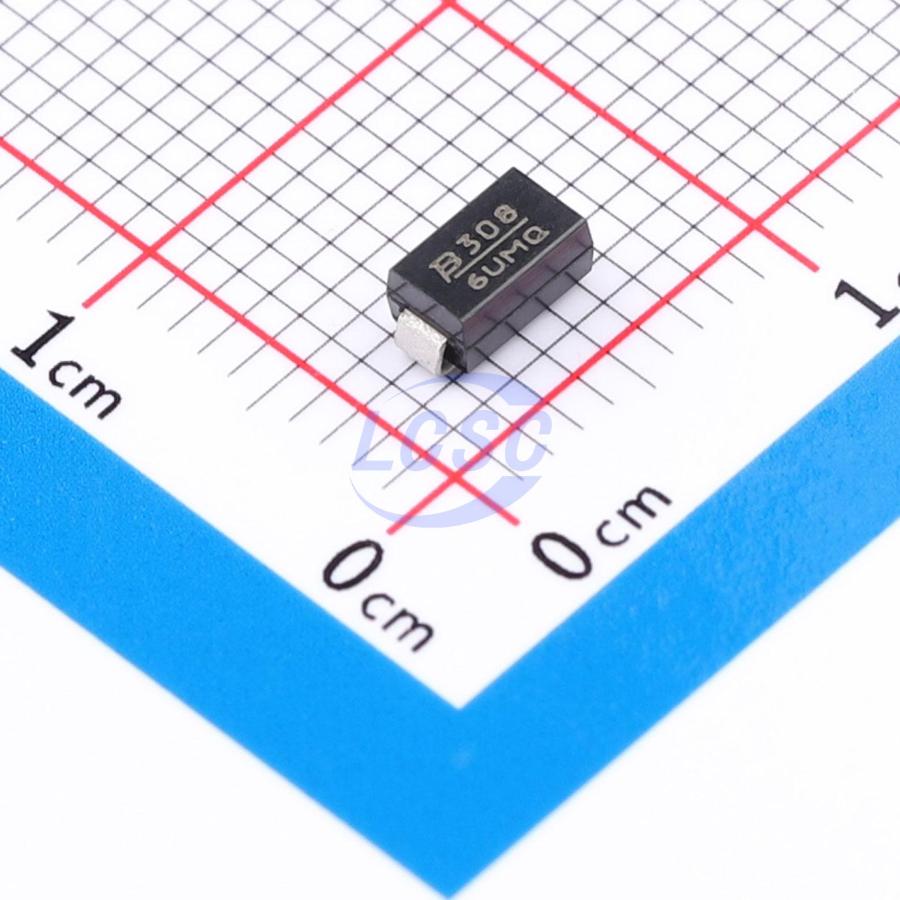

SMA6J15CA-Q
24.4VC Clamp 24.6A Ipp TVS DIODE SMA(DO-214AC)
- Manufacturer
- BOURNS
- Manufacturer part #
- SMA6J15CA-Q
- Store part #
- C1847833
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C1847833
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.73 | ₹107.73 |
| 10+ | ₹87.32 | ₹873.20 |
| 30+ | ₹77.10 | ₹2,313.00 |
| 100+ | ₹66.90 | ₹6,690.00 |
1 × ₹107.73
₹107.73
excl. GST
₹127.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMA6J15CA-Q
₹107.73 for 1 + GST
Specifications
- Clamping Voltage
- 24.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 24.6A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 18.5V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
Overview
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AC (SMA) size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 130 V. Typical fast response times are less than 1.0 picosecond from 0 V to Breakdown Voltage.
Applications
- Protection of power buses
- Protection of I/O interfaces
- Overvoltage transient protection
- Telecom, computer, industrial and consumer electronics applications
Key features
- Surface Mount SMA package
- Standoff Voltage: 5 to 130 volts
- Power Dissipation: 600 watts
- RoHS compliant
- AEC-Q101 compliant
