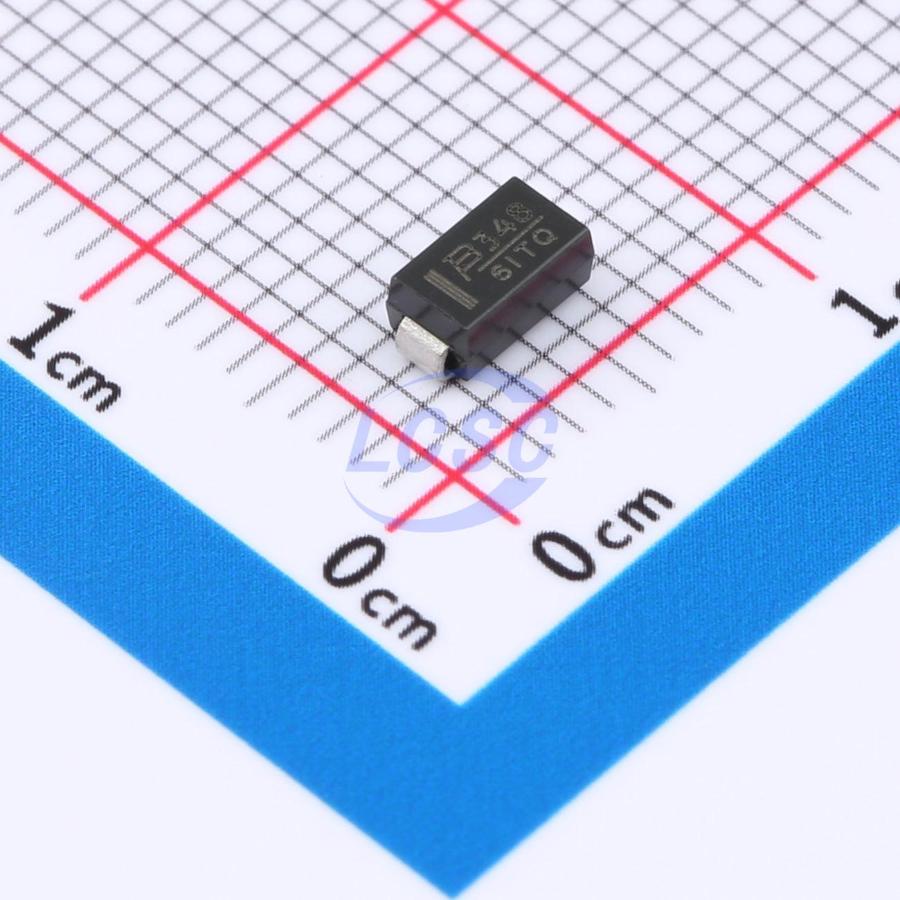

SMA6J18A-Q
29.2VC Clamp 20.6A Ipp TVS DIODE SMA(DO-214AC)
TVS DIODE 18VWM 29.2VC SMA(DO-214AC)
- Manufacturer
- BOURNS
- Manufacturer part #
- SMA6J18A-Q
- Store part #
- C1847759
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C1847759
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.31 | ₹166.55 |
| 50+ | ₹32.80 | ₹1,640.00 |
| 150+ | ₹32.45 | ₹4,867.50 |
| 500+ | ₹32.11 | ₹16,055.00 |
5 × ₹33.31
₹166.55
excl. GST
₹196.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMA6J18A-Q
₹166.55 for 5 + GST
Specifications
- Clamping Voltage
- 29.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 20.6A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 22.1V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.119 g
Overview
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AC (SMA) size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 130 V. Typical fast response times are less than 1.0 picosecond from 0 V to Breakdown Voltage.
Applications
- Protection of power buses
- Protection of I/O interfaces
- Overvoltage transient protection
- Telecom, computer, industrial and consumer electronics applications
Key features
- Surface Mount SMA package
- Standoff Voltage: 5 to 130 volts
- Power Dissipation: 600 watts
- RoHS compliant
- AEC-Q101 compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMA6J18A#C5161356ZHIDE · DO-214AC(SMA) | ZHIDE | DO-214AC(SMA) | 670 | ₹9.27 · 670 in stock | View |
 | SMA6J18AQ#C20603960YANGJIE · DO-214AC(SMA) | YANGJIE | DO-214AC(SMA) | 6,400 | ₹12.30 · 6,400 in stock | View |
 | SMA6J18A#C1977716Littelfuse · SMA(DO-214AC) | Littelfuse | SMA(DO-214AC) | 4,965 | ₹48.61 · 4,965 in stock | View |
| SMA6J17A#C3719276Littelfuse · DO-214AC(SMA) | Littelfuse | DO-214AC(SMA) | 4,805 | ₹39.74 · 4,805 in stock | View | |
 | SMA6J18A-TR#C472582ST · SMA(DO-214AC) | ST | SMA(DO-214AC) | 1 | ₹77.50 · 1 in stock | View |
