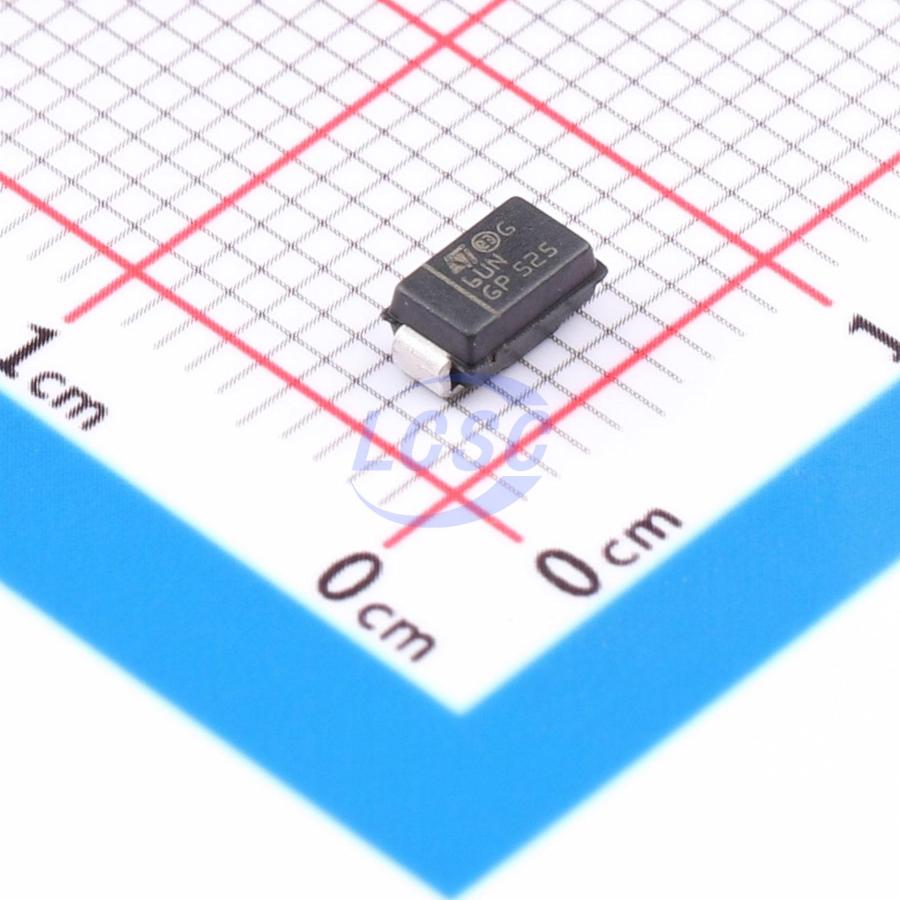

SMA6J26A-TR
47.9VC Clamp 75A@8/20us Ipp TVS DIODE DO-214AC
- Manufacturer
- ST
- Manufacturer part #
- SMA6J26A-TR
- Store part #
- C2970695
- Package / case
- DO-214AC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
179 in stock
#C2970695
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹166.30 | ₹166.30 |
| 10+ | ₹142.45 | ₹1,424.50 |
| 30+ | ₹130.75 | ₹3,922.50 |
| 100+ | ₹119.04 | ₹11,904.00 |
| 500+ | ₹111.89 | ₹55,945.00 |
| 1,000+ | ₹108.19 | ₹1,08,190.00 |
1 × ₹166.30
₹166.30
excl. GST
₹196.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMA6J26A-TR
₹166.30 for 1 + GST
Specifications
- Clamping Voltage
- 47.9V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 75A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 28.9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.115 g
Overview
The SMA6J series is designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015, and electrical overstress according to IEC 61000-4-4 and 5. This device is more generally used against surges below 600 W (10/1000 μs). The Planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability. SMA6J devices are packaged in SMA (SMA footprint in accordance with IPC 7531 standard).
Key features
- Peak pulse power: 600 W (10/1000 μs) 4 kW (8/20 μs)
- Stand-off voltage range from 5 V to 85 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 °C, 1 μA at 85 °C
- Operating Tj max: 175 °C
- JEDEC registered package outline
- Resin meets UL94, V0
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMA6J26A#C1977662Littelfuse · SMA(DO-214AC) | Littelfuse | SMA(DO-214AC) | 3,745 | ₹28.72 · 3,745 in stock | View |
| SMA6J28A#C3718952BOURNS · DO-214AC(SMA) | BOURNS | DO-214AC(SMA) | 100 | ₹87.42 · 100 in stock | View | |
 | SMA6J28A#C3717970Littelfuse · DO-214AC(SMA) | Littelfuse | DO-214AC(SMA) | 4,495 | ₹28.30 · 4,495 in stock | View |
 | SMA6J28AQ#C20603978YANGJIE · DO-214AC(SMA) | YANGJIE | DO-214AC(SMA) | 7,495 | ₹19.54 · 7,495 in stock | View |
| SMA6T30AY#C1982433ST · SMA(DO-214AC) | ST | SMA(DO-214AC) | 18 | ₹309.30 · 18 in stock | View | |
