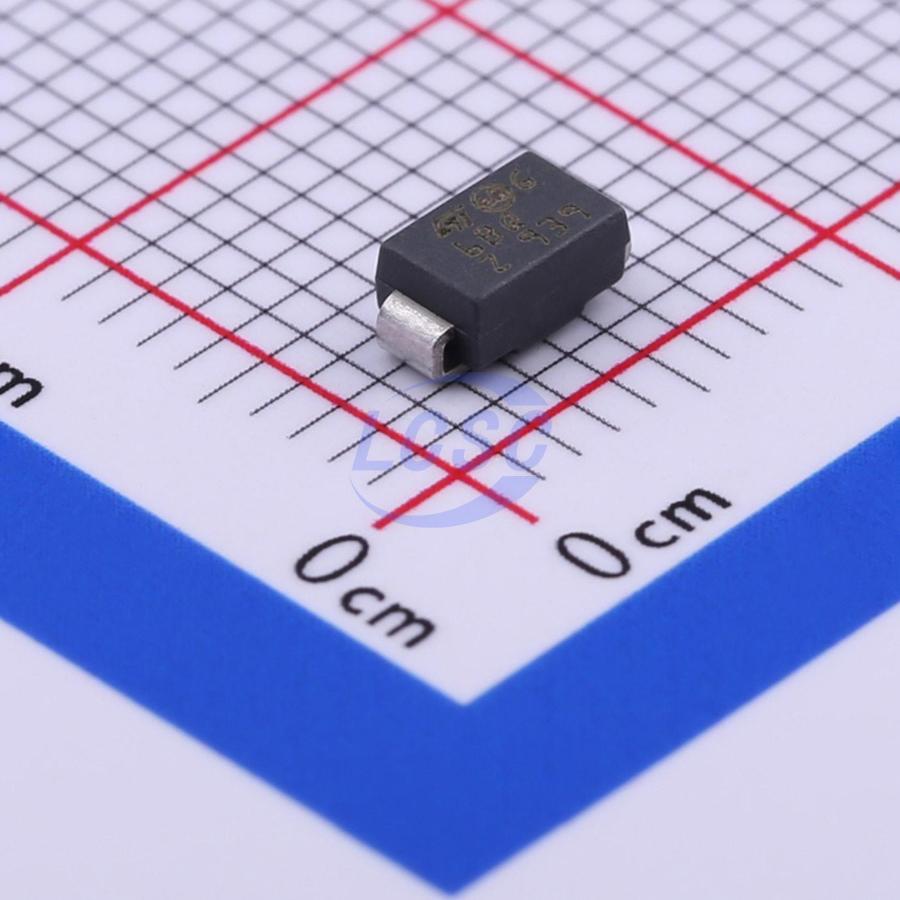

SMA6J33CA-TR

The SMA6J Transil series has been designed to protect sensitive equipment against electro-static discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are generally for surges below 600 W 10/1000 μs. This planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time. Their low clamping voltages provide a better safety margin to protect sensitive circuits with extended life time expectancy. Packaged in SMA, which minimizes PCB space consumption (SMA footprint in accordance with IPC 7531 standard).

Key features

• Peak pulse power: 600 W (10/1000 μs) 4 kW (8/20 μs)
• Stand-off voltage range: from 5 V to 188 V
• Unidirectional and bidirectional types
• Low leakage current: 0.2 μA at 25 °C 1 μA at 85 °C
• Operating Tj max: 175 °C
• JEDEC registered package outline
• Complies with the following standard: IEC 61000-4-2 level 4: ±15 kV (air discharge) ±8 kV (contact discharge)
• Complies with the following standard: MIL STD 883G, method 3015-7, class 3B: ±25 kV HBM (human body model)
