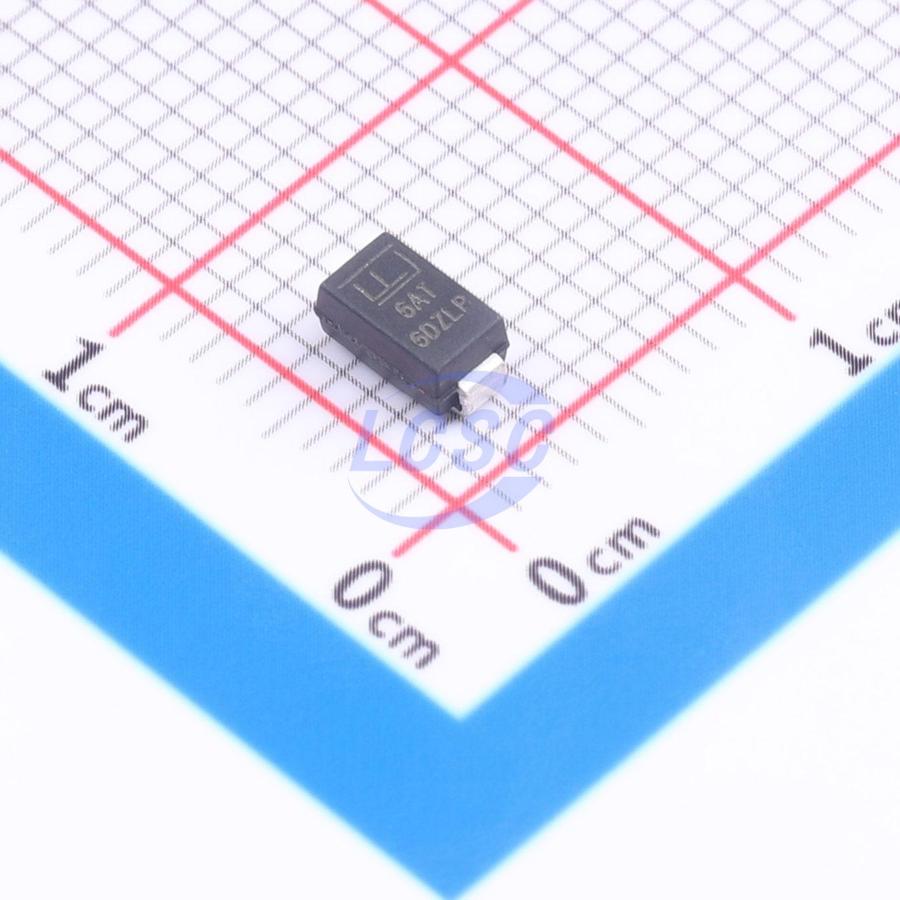

SMA6J8.5A
14.4VC Clamp 41.7A Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- SMA6J8.5A
- Store part #
- C1978904
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
317 in stock
#C1978904
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.63 | ₹59.63 |
| 10+ | ₹58.54 | ₹585.40 |
| 30+ | ₹57.89 | ₹1,736.70 |
| 100+ | ₹57.25 | ₹5,725.00 |
1 × ₹59.63
₹59.63
excl. GST
₹70.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMA6J8.5A
₹59.63 for 1 + GST
Specifications
- Clamping Voltage
- 14.4V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 41.7A
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 9.44V
- type
- TVS
- Reverse Leakage Current (Ir)
- 20uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 8.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.092 g
Overview
The SMA6J series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- Small DO-214AC SMT footprint for minimal board space requirement
- Typical failure mode is a short circuit condition for current events exceeding component rating
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC 61000-4-2 ESD 30kV(Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000-4-2
- Built-in strain relief
- Glass passivated junction
- Low inductance
- Excellent clamping capability
- 600W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
- Fast response time: typically less than 1.0ps from 0 Volts to VBR min
- Typical IR < 1μA when VBR min > 12V
- High temperature reflow soldering guaranteed: 260°C/30sec
- UL Recognized compound meeting flammability rating V-0
- Meet MSL level1, per J-STD-020, lead-frame maximun peak of 260°C
- Matte tin lead–free plated
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
