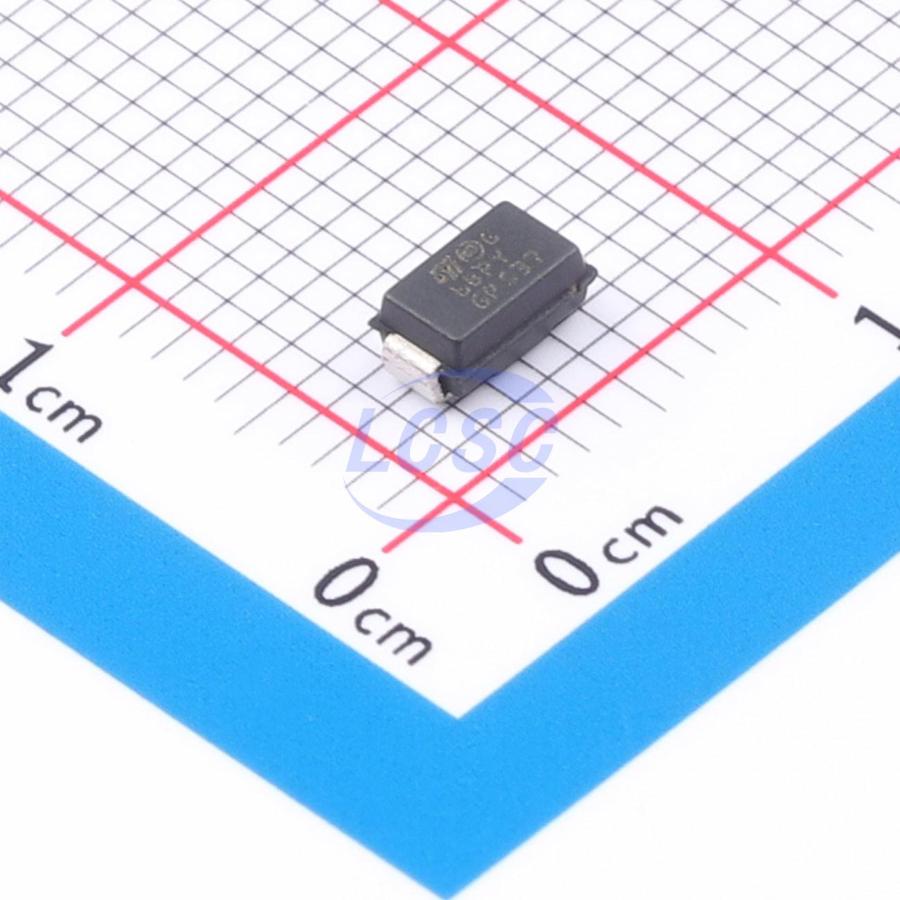

SMA6T36CAY
49.9VC Clamp 12A Ipp TVS DIODE SMA(DO-214AC)
- Manufacturer
- ST
- Manufacturer part #
- SMA6T36CAY
- Store part #
- C3714262
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C3714262
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹237.08 | ₹237.08 |
| 10+ | ₹233.64 | ₹2,336.40 |
| 30+ | ₹231.50 | ₹6,945.00 |
| 100+ | ₹229.13 | ₹22,913.00 |
1 × ₹237.08
₹237.08
excl. GST
₹279.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMA6T36CAY
₹237.08 for 1 + GST
Specifications
- Clamping Voltage
- 49.9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 12A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 34.2V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 30.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.279 g
Overview
The SMA6TY Transil series has been designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The planar technology makes this device compatible with high-end circuits where low leakage current and high junction temperature are required to provide reliability and stability over time. SMA6TY are packaged in SMA.
Key features
- AEC-Q101 qualified
- Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs)
- Stand-off voltage range: from 5 V to 70 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C
- Operating Tj max: 150 °C
- JEDEC registered package outline
- Lead finishing: matte tin plating
- UL94, V0
- J-STD-020 MSL level 1
- J-STD-002, JESD 22-B102 E3 and MIL-STD-750, method 2026
- JESD-201 class 2 whisker test
- IPC7531 footprint and JEDEC registered package outline
- IEC 61000-4-4 level 4 (4xV)
- ISO 10605, IEC 61000-4-2, C = 150 pF, R = 330 Ω exceeds level 4: 30 kV (air discharge) 30 kV (contact discharge)
- ISO 10605, C = 330 pF, R = 330 Ω exceeds level 4: 30 kV (air discharge) 30 kV (contact discharge)
- ISO 7637-2 (not applicable to parts with VR M lower than battery voltage) Pulse 1: VS = -150 V Pulse 2a: VS = +112 V Pulse 3a: VS = -220 V Pulse 3b: VS = +150 V
