TECH PUBLIC

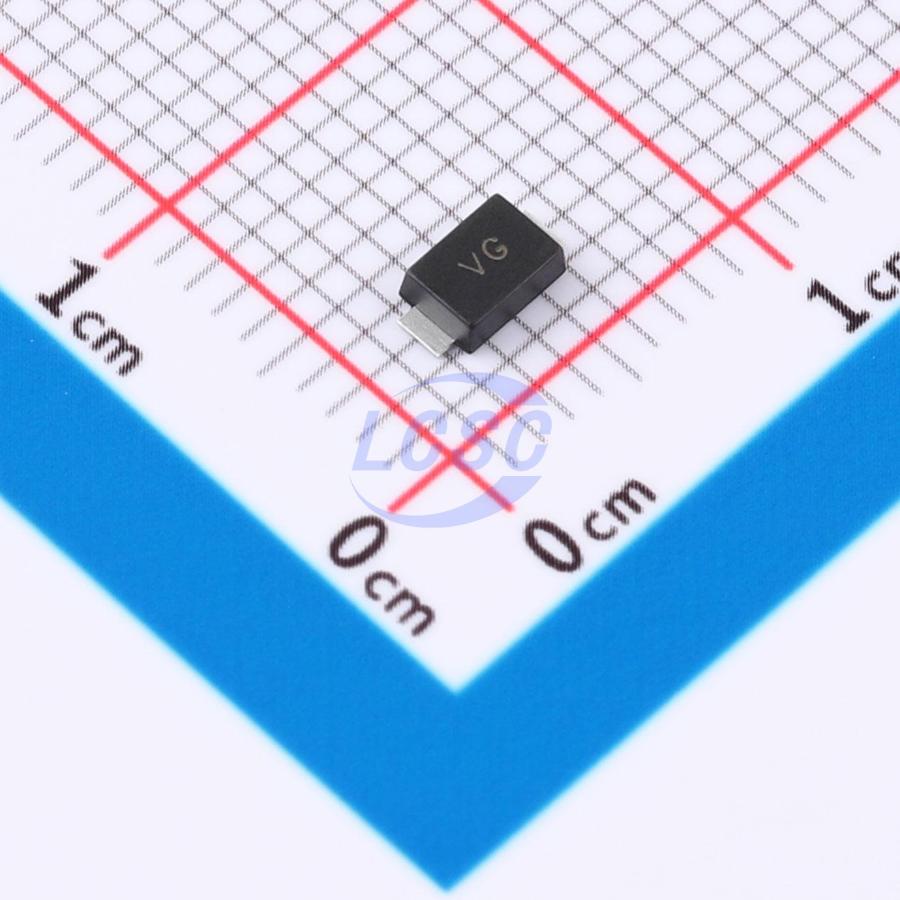

SMAFJ120CA

193V 3.11A 400W@10/1000us 147V Bidirectional 120V SMAFL TVS Diodes

SMAFLRoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: SMAFJ120CA
Store part #: C53278585
Package / case: SMAFL
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,440 in stock

#C53278585

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹5.38	₹53.80
100+	₹4.23	₹423.00
300+	₹3.66	₹1,098.00
3,000+	₹3.23	₹9,690.00
6,000+	₹2.88	₹17,280.00
9,000+	₹2.71	₹24,390.00

Quantity (min 10, multiples of 10)

10 × ₹5.38

₹53.80

excl. GST

₹63.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SMAFJ120CA

₹53.80 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 193V
Operating Temperature: -55℃~+150℃
Peak Pulse Current (Ipp): 3.11A
Peak Pulse Power Dissipation (Ppp): 400W@10/1000us
Number of Channels: 1
Voltage - Breakdown: 147V
type: TVS
Reverse Leakage Current (Ir): 1uA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 120V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.063 g

Overview

Applications

Computers
Telecommunications systems
Industrial equipment
Consumer electronics applications
Other VCC bus and I/O interfaces

Key features

Glass passivated die
1400W peak pulse power (10/1000μs)
Unidirectional and bidirectional versions
Low clamping voltage
Low leakage current
Extremely fast response time

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	SMAFJ130CA#C53100436TECH PUBLIC · SMAFL	TECH PUBLIC	SMAFL	2,990	₹5.34 · 2,990 in stock	View
	SMAFJ110CA#C53278586TECH PUBLIC · SMAFL	TECH PUBLIC	SMAFL	2,990	₹5.34 · 2,990 in stock	View
